DAZA Audi DAZA
Потужний 5-циліндровий двигун з турбонаддувом, відомий своєю продуктивністю та характерним звуком.
73
Brand engines
4
Modifications
Technical Specifications
| Engine Displacement | 2.5 L (1,984 cc) |
| Configuration | Inline-5 |
| Number of Cylinders | 5 |
| Valves per Cylinder | 4 |
| Power | 400 л.с. |
| Torque | 320 - 370 Н*м |
| Cylinder Bore | 82.50 mm |
| Piston Stroke | 92.80 mm |
| Compression Ratio | 9.3:1 |
| Firing Order | 1-2-4-5-3 |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Single twin-scroll turbocharger |
| Intercooler | Yes |
| Maximum RPM | 7,000 rpm |
| Max Torque RPM | 1,700 rpm |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 250000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Engine Weight | 183 kg |
| Dimensions (L×W×H) | null mm |
| Lubrication System | Pressure lubrication |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | EA855 Evo |
| Manufacturing Plant | Győr, Hungary |
| Predecessor | CEPA |
Maintenance
| Engine Oil Capacity | 6 L (with filter: 6.2 L) |
| Recommended Viscosity | 5W-30 |
| Oil Standard | VW 504 00 |
| Recommended Brands | Castrol Edge, Mobil 1, Liqui Moly |
| Oil Change Interval | 15 000 km or 12 mo |
| Oil Filter | 06K115562 |
| Air Filter |
5Q0129620
Replace every 60 000 km |
| Cabin Filter | 5Q0819653 |
| Spark Plugs |
Type: Iridium Part number: 06H905611AGap: 0.8 mm Quantity: 5 pcs Replace every 60 000 km |
| Coolant Capacity | 9 L |
| Coolant Type | G13 (Audi Coolant) |
| Coolant Change Interval | 240 000 km |
| Thermostat Opening Temperature | 87°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 110°C |
| Critical Temperature | 120°C |
| Annual Maintenance Cost | 1000-1500 USD |
Reliability
Expected lifespan: 300 000 km
Common problems
| Problem | Severity | Mileage | Repair cost |
|---|---|---|---|
| Oil consumption | Medium | 50000-100000 km | $500-1000 |
| Turbocharger failure | High | 100000-150000 km | $2000-3000 |
Known defects
- Early models had turbocharger issues
- PCV valve failures
Warranty extensions
- Audi extended warranty for turbocharger issues up to 7 years/100000 miles
Tuning potential
Tuning potential: Very High | Max. safe power: 650 hp
| Stage | Power | Torque | Method | Cost |
|---|---|---|---|---|
| Stage 1 | 450 hp | 550 Nm |
ECU remap only Reliability impact: Minimal |
$800 |
| Stage 2 | 500 hp | 600 Nm |
ECU, Downpipe, Intake Required: Upgraded intercooler, Downpipe, ECU remap Reliability impact: Low |
$3000 |
| Stage 3 | 600 hp | 700 Nm |
Hybrid Turbo, Injectors Required: Bigger turbo, Forged internals, Upgraded fuel system Reliability impact: Medium-High |
$10000 |
Popular modifications
- Cold air intake
- High-flow exhaust
- Upgraded intercooler
Tuning limitations
- Stock internals limit at ~600hp
- Cooling system upgrades needed for track use
Детальні технічні характеристики
14
модифікацій
400–400
к.с.
Спільні характеристики
| Back suspension | Independent, spring |
| Boost type | Turbocharged |
| Capacity | 2480 cm3 |
| Clearance | 120 mm |
| Compression ratio | 10 |
| Country | Germany |
| Cylinder bore | 82.5 mm |
| Cylinder layout | inline |
| Emission standards | Euro 6 |
| Engine code | DAZA |
| Engine placement | Front, transverse |
| Engine type | Gasoline |
| Front brakes | ventilated disc |
| Front suspension | Independent, spring |
| Fuel | 98 |
| Fuel tank capacity | 55 l |
| Injection type | direct injection (direct) |
| Max speed | 250 km/h |
| Number of cylinders | 5 |
| Number of gear | 7 |
| Rear brakes | ventilated disc |
| Steering wheel position | Left |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y) [рест.]
2024–2026
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Maximum torque
500 N*m
Min trunk capacity
321 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
CO2 emissions
213 g/km
Mixed driving fuel consumption per 100 km
9.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1565 kg
Front track width
1592 mm
Full weight
2055 kg
Height
1412 mm
Length
4533 mm
Number of doors
4
Wheelbase
2631 mm
Width
1851 mm
other
Body type
Sedan
Car class
C
Number of seater
5
2.5 TFSI S tronic Quattro (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y) [рест.]
2024–2026
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Max trunk capacity
315 l
Maximum torque
500 N*m
Min trunk capacity
321 l
Presence of intercooler
Present
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
213 g/km
Cruising range
from 490 to 850 km
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
9.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1565 kg
Front track width
1592 mm
Full weight
2055 kg
Ground clearance
120 mm
Height
1412 mm
Length
4533 mm
Number of doors
4
Wheelbase
2631 mm
Width
1851 mm
other
Body type
Sedan
Car class
C
Front track
1559 mm
Number of seater
5
Payload
415 kg
Rear track
1528 mm
Turning circle
11 m
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y)
2021–2024
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Max trunk capacity
1104 l
Maximum torque
500 N*m
Min trunk capacity
282 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
201 g/km
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1570 kg
Front track width
1592 mm
Full weight
2075 kg
Height
1436 mm
Length
4389 mm
Number of doors
5
Wheelbase
2631 mm
Width
1851 mm
suspension
Wheel size
245/35/R19, 265/30/R19
other
Body type
Hatchback
Car class
C
Number of seater
5
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y)
2021–2024
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Maximum torque
500 N*m
Min trunk capacity
321 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
198 g/km
Highway driving fuel consumption per 100 km
7.0 l
Mixed driving fuel consumption per 100 km
8.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1575 kg
Front track width
1592 mm
Full weight
2080 kg
Height
1412 mm
Length
4542 mm
Number of doors
4
Wheelbase
2631 mm
Width
1851 mm
suspension
Wheel size
245/35/R19, 265/30/R19
other
Body type
Sedan
Car class
C
Number of seater
5
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y)
2021–2024
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Max trunk capacity
1104 l
Maximum torque
500 N*m
Min trunk capacity
282 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
201 g/km
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1570 kg
Front track width
1592 mm
Full weight
2075 kg
Height
1436 mm
Length
4389 mm
Number of doors
5
Wheelbase
2631 mm
Width
1851 mm
other
Body type
Hatchback
Car class
C
Number of seater
5
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 3 (8Y)
2021–2024
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Maximum torque
500 N*m
Min trunk capacity
321 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
198 g/km
Highway driving fuel consumption per 100 km
7.0 l
Mixed driving fuel consumption per 100 km
8.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1575 kg
Front track width
1592 mm
Full weight
2080 kg
Height
1412 mm
Length
4542 mm
Number of doors
4
Wheelbase
2631 mm
Width
1851 mm
other
Body type
Sedan
Car class
C
Number of seater
5
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot

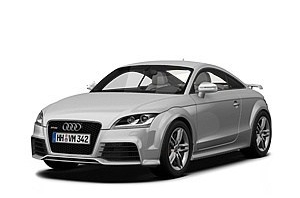

TT RS 8S [рест.]
2019–2023
400 hp
engine
Engine model
DAZA
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Maximum torque
480 N*m
Min trunk capacity
280 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
3.9 s
fuel
City driving fuel consumption per 100 km
10.6 l
CO2 emissions
210 g/km
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
9.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1543 mm
Curb weight
1565 kg
Front track width
1564 mm
Full weight
1850 kg
Height
1345 mm
Length
4201 mm
Number of doors
2
Wheelbase
2505 mm
Width
1832 mm
suspension
Wheel size
245/35 R19
other
Body type
Roadster
Car class
S
Disc size
9x19 ET52, 8x19 ET52, 9x20 ET52
Number of seater
2
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
TT RS 8S [рест.]
2019–2023
400 hp
engine
Engine model
DAZA
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Max trunk capacity
712 l
Maximum torque
480 N*m
Min trunk capacity
305 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
3.7 s
fuel
City driving fuel consumption per 100 km
10.6 l
CO2 emissions
208 g/km
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
9.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1543 mm
Curb weight
1475 kg
Front track width
1564 mm
Full weight
1875 kg
Height
1344 mm
Length
4201 mm
Number of doors
2
Wheelbase
2505 mm
Width
1832 mm
suspension
Wheel size
245/35 R19
other
Body type
Coupe
Car class
S
Number of seater
4
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 2 (8V) [рест.]
2017–2021
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5600 RPM
Max trunk capacity
1104 l
Maximum torque
500 N*m
Min trunk capacity
282 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5600 RPM
performance
Acceleration (0-100 km/h)
3.8 s
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
217 g/km
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
9.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1524 mm
Curb weight
1565 kg
Front track width
1592 mm
Full weight
2055 kg
Height
1430 mm
Length
4381 mm
Number of doors
5
Wheelbase
2631 mm
Width
1851 mm
suspension
Wheel size
235/35 R19
other
Body type
Hatchback
Car class
C
Disc size
8.5x19 ET53 8 19 49, 8x19 ET49, 8x20 ET49, 9x20 ET50 8 20 45
Number of seater
5
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 2 (8V) [рест.]
2017–2021
400 hp
engine
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Maximum torque
480 N*m
Min trunk capacity
390 l
Stroke cycle
92.5 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
4.1 s
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
192 g/km
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1528 mm
Curb weight
1585 kg
Front track width
1559 mm
Height
1411 mm
Length
4479 mm
Number of doors
4
Wheelbase
2631 mm
Width
1802 mm
suspension
Wheel size
235/35 R19, 255/30 R19
other
Body type
Sedan
Car class
C
Disc size
8x19 ET49, 8x19 ET42, 8.5x19 ET46, 8.5x19 ET53
Number of seater
5
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 2 (8V) [рест.]
2017–2021
400 hp
engine
Engine model
VW EA855evo DNW
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Max trunk capacity
1175 l
Maximum torque
480 N*m
Min trunk capacity
335 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
4.1 s
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
189 g/km
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1514 mm
Curb weight
1510 kg
Front track width
1559 mm
Full weight
2010 kg
Height
1411 mm
Length
4335 mm
Number of doors
5
Wheelbase
2631 mm
Width
1800 mm
suspension
Wheel size
235/35 R19
other
Body type
Hatchback
Car class
C
Number of seater
5
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
RS 3 2 (8V) [рест.]
2017–2021
400 hp
engine
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Maximum torque
480 N*m
Min trunk capacity
390 l
Stroke cycle
92.5 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
4.1 s
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
192 g/km
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1528 mm
Curb weight
1585 kg
Front track width
1559 mm
Height
1411 mm
Length
4479 mm
Number of doors
4
Wheelbase
2631 mm
Width
1802 mm
suspension
Wheel size
235/35 R19, 255/30 R19
other
Body type
Sedan
Car class
C
Number of seater
5
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT 4WD (400 hp)
Привід All wheel drive (AWD)
КПП robot
TT RS 8S
2016–2018
400 hp
engine
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Maximum torque
480 N*m
Min trunk capacity
280 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
3.9 s
fuel
City driving fuel consumption per 100 km
11.4 l
CO2 emissions
189 g/km
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1543 mm
Curb weight
1530 kg
Front track width
1564 mm
Full weight
1850 kg
Height
1346 mm
Length
4191 mm
Number of doors
2
Wheelbase
2505 mm
Width
1832 mm
suspension
Wheel size
245/35 R19, 255/30 R20
other
Body type
Roadster
Car class
S
Disc size
9x19 ET52, 9x20 ET52
Number of seater
2
Pitch Circle Diameter
DIA57.1 5x112 mm
2.5 AMT AWD (400 hp)
Привід All wheel drive (AWD)
КПП robot
TT RS 8S
2016–2018
400 hp
engine
Engine power
400 hp
Max power (kW)
294 kW
Max power at RPM
5850 RPM
Maximum torque
480 N*m
Min trunk capacity
280 l
Stroke cycle
92.8 mm
Turnover of maximum torque
5850 RPM
performance
Acceleration (0-100 km/h)
3.9 s
fuel
City driving fuel consumption per 100 km
11.4 l
CO2 emissions
189 g/km
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
robot
dimensions
Back track width
1543 mm
Curb weight
1530 kg
Front track width
1564 mm
Full weight
1850 kg
Height
1346 mm
Length
4191 mm
Number of doors
2
Wheelbase
2505 mm
Width
1832 mm
suspension
Wheel size
245/35 R19, 255/30 R20
other
Body type
Roadster
Car class
S
Number of seater
2
Pitch Circle Diameter
DIA57.1 5x112 mm
Cars with the DAZA engine
This engine was fitted to 2 models
| Photo | Brand | Model | Generation | Production years |
|---|---|---|---|---|
|
Audi | TT RS | TT RS II (FV) | 2016 - 2023 |
|
No photo
|
Audi | RS 3 | RS 3 (8V) | 2015 - 2020 |
|
No photo
|
Audi | RS 3 | RS 3 (8Y) | 2021 - present |
All modifications (4)
| Vehicle | Generation | Modification | Power | Gearbox | Drive |
|---|---|---|---|---|---|
| Audi TT RS | TT RS II (FV) | 2.5 TFSI 400 л.с. 7 S-tronic 4x4 | 400 hp | 7 S-tronic | 4x4 |
| Audi TT RS | TT RS II (FV) | 2.5 TFSI 400 л.с. 6-МКП 4x4 | 400 hp | 6-МКП | 4x4 |
| Audi RS 3 | RS 3 (8V) | RS 3 2.5 TFSI 400 л.с. 7 S-tronic 4x4 | 400 hp | 7 S-tronic | 4x4 |
| Audi RS 3 | RS 3 (8Y) | 2.5 TFSI 400 л.с. 7 S-tronic 4x4 | 400 hp | 7 S-tronic | 4x4 |
Interesting Facts
- The DAZA engine is known for its distinctive 5-cylinder sound.
- It has won multiple awards for its performance and engineering.
Applications
Total produced: unknown
| Vehicle | Generation | Years | Power | Markets |
|---|---|---|---|---|
| Audi RS3 | 8V | 2015-2020 | 400hp | Europe, USA, Asia |
| Audi TT RS | 8S | 2016-present | 400hp | Europe, USA |
Compatible transmissions: 7-speed S tronic
Drive types: AWD
Fuel Economy
| Fuel Type | Petrol 98 |
| Octane Rating | Minimum: 95 | Recommended: 98 |
| Consumption (City) | 11 L/100km |
| Consumption (Highway) | 7.5 L/100km |
| Consumption (Combined) | 9 L/100km |
| Real Consumption | 10.5 L/100km |
| Fuel Tank Capacity | 55 L |
| Range | 611 km |
| Cost per 100 km | 15-20 USD |
Emissions Standards
| Emission Standard | Euro 6 |
| CO₂ Emissions | 189 g/km |
| Particulate Filter (DPF) | Absent |
| AdBlue | Not Required |
Awards and Recognition
- International Engine of the Year (2017) — 2.0L to 2.5L
