EA839 Audi EA839
Сучасний V6 двигун з турбонаддувом, що забезпечує високу потужність та ефективність. Відомий своєю надійністю та можливістю тюнінгу.
73
Двигунів бренду
31
Модифікацій
Technical Specifications
| Engine Displacement | 3.0 л (2,995 см³) |
| Configuration | V6 |
| Number of Cylinders | 6 |
| Valves per Cylinder | 4 |
| Power | 340 - 450 л.с. |
| Torque | 500 - 600 Н*м |
| Cylinder Bore | 84.50 мм |
| Piston Stroke | 89.00 мм |
| Compression Ratio | 11.2:1 |
| Firing Order | 1-4-3-6-2-5 |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Single twin-scroll turbocharger |
| Intercooler | Yes |
| Maximum RPM | 6,500 об/хв |
| Max Torque RPM | 1,370 об/хв |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 250000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Lubrication System | Pressure lubrication with dry sump |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | Volkswagen Group EA839 |
| Manufacturing Plant | Győr, Hungary |
| Predecessor | EA837 |
Maintenance
| Engine Oil Capacity | 7 л (з фільтром: 7.5 л) |
| Recommended Viscosity | 5W-30 |
| Oil Standard | VW 504 00 |
| Recommended Brands | Castrol Edge, Mobil 1, Liqui Moly |
| Oil Change Interval | 15 000 км або 12 міс. |
| Oil Filter | 06M115562A |
| Air Filter |
4M0133843
Заміна кожні 60 000 км |
| Cabin Filter | 4M0898438 |
| Spark Plugs |
Тип: Iridium Артикул: 06M905601MЗазор: 0.8 мм Кількість: 6 шт Заміна кожні 60 000 км |
| Coolant Capacity | 10.5 л |
| Coolant Type | G13 (Audi Coolant) |
| Coolant Change Interval | 240 000 км |
| Thermostat Opening Temperature | 87°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 110°C |
| Critical Temperature | 120°C |
| Annual Maintenance Cost | 1000-1500 USD |
Надійність
Очікуваний ресурс: 300 000 км
Типові проблеми
| Проблема | Серйозність | Пробіг | Вартість ремонту |
|---|---|---|---|
| Oil consumption | Medium | 50000-100000 km | $500-1000 |
| Carbon buildup on intake valves | Medium | 80000-120000 km | $600-1200 |
Відомі дефекти
- Early models had issues with timing chain tensioners
Розширення гарантії
- Extended warranty for timing chain issues in certain markets
Потенціал тюнінгу
Потенціал тюнінгу: High | Макс. безпечна потужність: 550 л.с.
| Етап | Потужність | Крутний момент | Метод | Вартість |
|---|---|---|---|---|
| Stage 1 | 400 л.с. | 550 Н*м |
ECU remap only Вплив на надійність: Minimal |
$800 |
| Stage 2 | 450 л.с. | 600 Н*м |
ECU, Downpipe, Intake Необхідно: Upgraded intercooler, Downpipe, ECU remap Вплив на надійність: Low |
$3000 |
| Stage 3 | 500 л.с. | 650 Н*м |
Hybrid Turbo, Injectors Необхідно: Bigger turbo, Forged internals, Upgraded fuel system Вплив на надійність: Medium-High |
$10000 |
Популярні модифікації
- ECU tuning
- Upgraded exhaust system
- High-flow air intake
Обмеження тюнінгу
- Stock internals limit power above 500hp
- Cooling system upgrades recommended for track use
Детальні технічні характеристики
6
модифікацій
354–367
к.с.
Спільні характеристики
| Back suspension | Independent, spring |
| Car class | D |
| Country | Germany |
| Cylinder bore | 84.5 mm |
| Cylinder layout | V-type |
| Emission standards | Euro 6 |
| Engine model | EA839 |
| Engine placement | Front, longitudinal |
| Engine type | Gasoline |
| Front brakes | ventilated disc |
| Front suspension | Independent, spring |
| Injection type | direct injection (direct) |
| Number of cylinders | 6 |
| Number of seater | 5 |
| Rear brakes | ventilated disc |
| Steering wheel position | Left |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
3.0 AT 4WD (367 hp)
Привід All wheel drive (AWD)
КПП Automatic
S5 3 (B10)
2024–2026
367 hp
engine
Boost type
compressor
Capacity
2995 cm3
Compression ratio
12
Engine code
VW EA839
Engine power
367 hp
Fuel tank capacity
56 l
Max power (kW)
270 kW
Max power at RPM
5500 RPM
Max trunk capacity
1271 l
Maximum torque
550 N*m
Min trunk capacity
417 l
Stroke cycle
89.0 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
CO2 emissions
175 g/km
Fuel
95
Mixed driving fuel consumption per 100 km
7.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
7
dimensions
Back track width
1597 mm
Curb weight
1950 kg
Front track width
1612 mm
Full weight
2500 kg
Height
1410 mm
Length
4829 mm
Number of doors
5
Wheelbase
2897 mm
Width
1860 mm
suspension
Wheel size
245/40 R19
other
Body type
Liftback
Flow calculation method
WLTP
Pitch Circle Diameter
DIA66.5 5x112 mm
3.0 AT 4WD (367 hp)
Привід All wheel drive (AWD)
КПП Automatic
S5 3 (B10)
2024–2026
367 hp
engine
Boost type
compressor
Capacity
2995 cm3
Compression ratio
12
Engine code
VW EA839
Engine power
367 hp
Fuel tank capacity
56 l
Max power (kW)
270 kW
Max power at RPM
5500 RPM
Max trunk capacity
1396 l
Maximum torque
550 N*m
Min trunk capacity
448 l
Stroke cycle
89.0 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
CO2 emissions
180 g/km
Fuel
95
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
7
dimensions
Back track width
1597 mm
Curb weight
1965 kg
Front track width
1612 mm
Full weight
2520 kg
Height
1424 mm
Length
4829 mm
Number of doors
5
Wheelbase
2897 mm
Width
1860 mm
suspension
Wheel size
245/40 R19
other
Body type
Wagon
Flow calculation method
WLTP
Pitch Circle Diameter
DIA66.5 5x112 mm
3.0 AT AWD (367 hp)
Привід All wheel drive (AWD)
КПП Automatic
S5 3 (B10)
2024–2026
367 hp
engine
Boost type
compressor
Capacity
2995 cm3
Compression ratio
12
Engine code
VW EA839
Engine power
367 hp
Fuel tank capacity
56 l
Max power (kW)
270 kW
Max power at RPM
5500 RPM
Max trunk capacity
1396 l
Maximum torque
550 N*m
Min trunk capacity
448 l
Stroke cycle
89.0 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
CO2 emissions
180 g/km
Fuel
95
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
7
dimensions
Back track width
1597 mm
Curb weight
1965 kg
Front track width
1612 mm
Full weight
2520 kg
Height
1424 mm
Length
4829 mm
Number of doors
5
Wheelbase
2897 mm
Width
1860 mm
suspension
Wheel size
245/40 R19
other
Body type
Wagon
Flow calculation method
WLTP
Pitch Circle Diameter
DIA66.5 5x112 mm
3.0 AT AWD (367 hp)
Привід All wheel drive (AWD)
КПП Automatic
S5 3 (B10)
2024–2026
367 hp
engine
Boost type
compressor
Capacity
2995 cm3
Compression ratio
12
Engine code
VW EA839
Engine power
367 hp
Fuel tank capacity
56 l
Max power (kW)
270 kW
Max power at RPM
5500 RPM
Max trunk capacity
1271 l
Maximum torque
550 N*m
Min trunk capacity
417 l
Stroke cycle
89.0 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
CO2 emissions
175 g/km
Fuel
95
Mixed driving fuel consumption per 100 km
7.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
7
dimensions
Back track width
1597 mm
Curb weight
1950 kg
Front track width
1612 mm
Full weight
2500 kg
Height
1410 mm
Length
4829 mm
Number of doors
5
Wheelbase
2897 mm
Width
1860 mm
suspension
Wheel size
245/40 R19
other
Body type
Liftback
Flow calculation method
WLTP
Pitch Circle Diameter
DIA66.5 5x112 mm
2.9 AT 4WD (470 hp)
Привід All wheel drive (AWD)
КПП Automatic
RS 4 B9 [рест.]
2019–2026
470 hp
engine
Boost type
Turbocharged
Capacity
2894 cm3
Compression ratio
10
Fuel tank capacity
58 l
Max trunk capacity
1510 l
Maximum torque
600 N*m
Min trunk capacity
495 l
Stroke cycle
86.0 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
3.7 s
Max speed
300 km/h
fuel
CO2 emissions
225 g/km
Fuel
98
Mixed driving fuel consumption per 100 km
9.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1575 mm
Clearance
120 mm
Curb weight
1745 kg
Front track width
1580 mm
Full weight
2275 kg
Height
1438 mm
Length
4782 mm
Number of doors
5
Wheelbase
2826 mm
Width
1866 mm
suspension
Wheel size
275/30 R20
other
Body type
Wagon
Flow calculation method
WLTP
Pitch Circle Diameter
DIA66.6 5x112 mm
3.0 AT 4WD (354 hp)
Привід All wheel drive (AWD)
КПП Automatic
S4 5 (B9) [рест.]
2019–2026
354 hp
engine
Boost type
Turbocharged
Capacity
2995 cm3
Compression ratio
11.2
Engine code
VW EA839
Engine power
354 hp
Fuel tank capacity
58 l
Max power (kW)
260 kW
Max power at RPM
5400 RPM
Maximum torque
500 N*m
Min trunk capacity
480 l
Stroke cycle
89.0 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
4.7 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.8 l
Fuel
95
Highway driving fuel consumption per 100 km
8.7 l
Mixed driving fuel consumption per 100 km
10.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1546 mm
Clearance
140 mm
Curb weight
1630 kg
Front track width
1565 mm
Full weight
2200 kg
Height
1404 mm
Length
4770 mm
Number of doors
4
Wheelbase
2825 mm
Width
1847 mm
suspension
Wheel size
245/40 R18
other
Body type
Sedan
Автомобілі з двигуном EA839
Цей двигун встановлювався на 19 моделей
| Фото | Бренд | Модель | Генерація | Роки випуску |
|---|---|---|---|---|
|
Audi | A4 | A4 (B9, 8W) | 2015 - present |
|

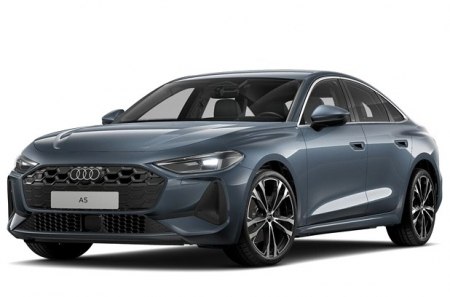

Audi | A5 | A5 II (F5) | 2016 - 2025 |
|

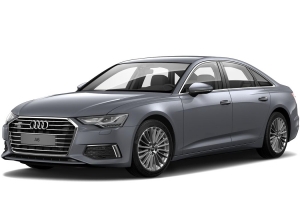

Audi | A6 | A6 (C8) | 2018 - 2025 |
|
Audi | A6 | A6 (C9) | 2025 - present |
|
|
Audi | A6 e-tron | A6 e-tron | 2024 - present |
|

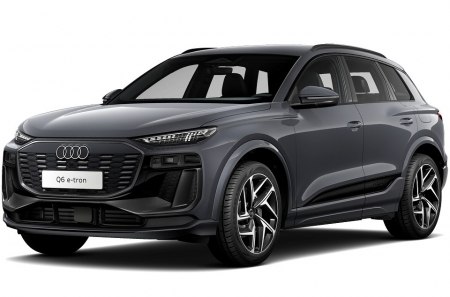

Audi | Q6 e-tron | Q6 e-tron | 2024 - present |
|

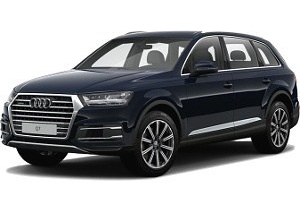

Audi | Q7 | Q7 II (4M) | 2015 - present |
|

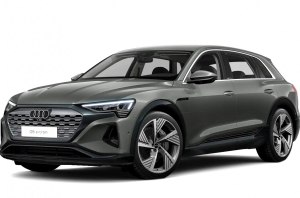

Audi | Q8 | Q8 | 2018 - present |
|
|
Audi | Q8 Sportback e-tron | Q8 Sportback e-tron | 2023 - present |
|

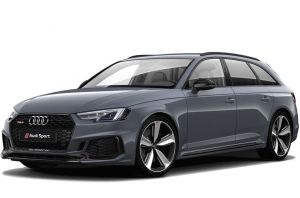

Audi | S4 | S4 (B9, 8K) | 2016 - present |
|

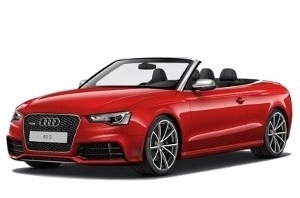

Audi | S5 | S5 III (B10) | 2024 - present |
|

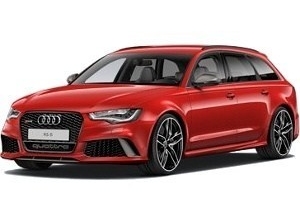

Audi | S6 | S6 V (C8) | 2019 - present |
|

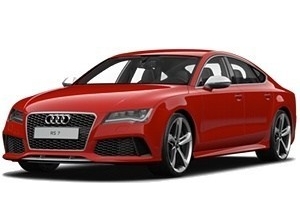

Audi | S7 | S7 II (4K8) | 2019 - present |
|

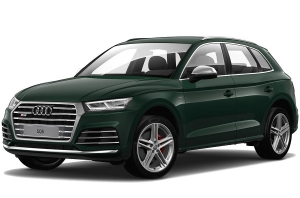

Audi | SQ5 | SQ5 | 2012 - 2017 |
|

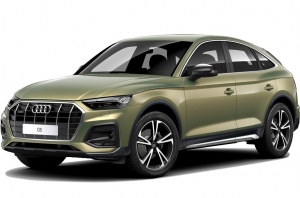

Audi | SQ5 | SQ5 III (GU) | 2024 - present |
|

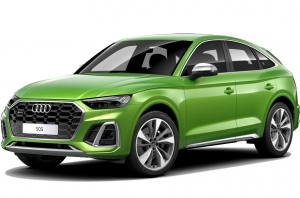

Audi | SQ5 Sportback | SQ5 Sportback (FY) | 2021 - 2025 |
|
|
Audi | SQ5 Sportback | SQ5 Sportback II (GU) | 2025 - present |
|
Немає фото
|
Porsche | Cayenne | Cayenne III | 2017 - present |
|
Немає фото
|
Porsche | Macan | Macan II | 2024 - present |
|
Немає фото
|
Audi | Q5 e-tron | Q5 e-tron (FY) | 2022 - present |
|
Немає фото
|
Audi | RS 4 | RS 4 (B9) | 2017 - present |
|
Немає фото
|
Audi | RS 5 | RS 5 (F5) | 2017 - present |
Всі модифікації (31)
| Автомобіль | Генерація | Модифікація | Потужність | Коробка | Привід |
|---|---|---|---|---|---|
| Audi A4 | A4 (B9, 8W) | 55 TFSI 3.0 TFSI 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Audi A5 | A5 II (F5) | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi A5 | A5 II (F5) | 55 TFSI 3.0 TFSI 340 л.с. 7 S-tronic 4x4 | 340 л.с. | 7 S-tronic | 4x4 |
| Audi A6 | A6 (C8) | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi A6 | A6 (C8) | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 2WD | 340 л.с. | 8-Автомат | 2WD |
| Audi A6 | A6 (C9) | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi A6 e-tron | A6 e-tron | 50 TFSI 3.0 TFSI 340 л.с. 7 S-tronic 4x4 | 340 л.с. | 7 S-tronic | 4x4 |
| Audi A6 e-tron | A6 e-tron | 55 TFSI 3.0 TFSI 450 л.с. 7 S-tronic 4x4 | 450 л.с. | 7 S-tronic | 4x4 |
| Audi Q6 e-tron | Q6 e-tron | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi Q7 | Q7 II (4M) | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi Q8 | Q8 | 55 TFSI 3.0 TFSI 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi Q8 Sportback e-tron | Q8 Sportback e-tron | Q8 Sportback 55 TFSI 3.0 V6 340 к.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Audi S4 | S4 (B9, 8K) | 3.0 TFSI V6 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Audi S5 | S5 III (B10) | 50 TFSI 3.0 TFSI 354 л.с. 7 S-tronic 4x4 | 354 л.с. | 7 S-tronic | 4x4 |
| Audi S6 | S6 V (C8) | V6 2.9 TFSI 450 л.с. 8-Автомат 4x4 | 450 л.с. | 8-Автомат | 4x4 |
| Audi S6 | S6 V (C8) | V6 2.9 TFSI 450 л.с. 7 S-tronic 4x4 | 450 л.с. | 7 S-tronic | 4x4 |
| Audi S7 | S7 II (4K8) | 2.9 TFSI V6 450 л.с. 8-Автомат 4x4 | 450 л.с. | 8-Автомат | 4x4 |
| Audi S7 | S7 II (4K8) | 2.9 TFSI V6 450 л.с. 7 S-tronic 4x4 | 450 л.с. | 7 S-tronic | 4x4 |
| Audi SQ5 | SQ5 | 3.0 TFSI V6 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Audi SQ5 | SQ5 | 3.0 TFSI V6 354 л.с. 7 S-tronic 4x4 | 354 л.с. | 7 S-tronic | 4x4 |
| Audi SQ5 | SQ5 III (GU) | 3.0 TFSI 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Audi SQ5 Sportback | SQ5 Sportback (FY) | 3.0 TFSI V6 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Audi SQ5 Sportback | SQ5 Sportback II (GU) | 55 TFSI 3.0 TFSI 354 л.с. 8-Автомат 4x4 | 354 л.с. | 8-Автомат | 4x4 |
| Porsche Cayenne | Cayenne III | Cayenne 2.9 V6 340 л.с. 8-Автомат 4x4 | 340 л.с. | 8-Автомат | 4x4 |
| Porsche Cayenne | Cayenne III | Cayenne 2.9 V6 340 л.с. 8-Автомат 2WD | 340 л.с. | 8-Автомат | 2WD |
| Porsche Cayenne | Cayenne III | Cayenne S 2.9 V6 440 л.с. 8-Автомат 4x4 | 440 л.с. | 8-Автомат | 4x4 |
| Porsche Macan | Macan II | GTS 2.9 V6 380 л.с. 8-Автомат 4x4 | 380 л.с. | 8-Автомат | 4x4 |
| Porsche Macan | Macan II | Turbo 2.9 V6 440 л.с. 8-Автомат 4x4 | 440 л.с. | 8-Автомат | 4x4 |
| Audi Q5 e-tron | Q5 e-tron (FY) | 55 TFSI 3.0 V6 340 л.с. 7 S-tronic 4x4 | 340 л.с. | 7 S-tronic | 4x4 |
| Audi RS 4 | RS 4 (B9) | RS 4 2.9 TFSI 450 л.с. 8-Автомат 4x4 | 450 л.с. | 8-Автомат | 4x4 |
| Audi RS 5 | RS 5 (F5) | 2.9 TFSI 450 л.с. 8-Автомат 4x4 | 450 л.с. | 8-Автомат | 4x4 |
Цікаві факти
- The EA839 engine features a 48V mild hybrid system in some applications
- It uses a twin-scroll turbocharger for improved efficiency and performance
Застосування
| Автомобіль | Генерація | Роки | Потужність | Ринки |
|---|---|---|---|---|
| Audi A6 | C8 | 2018-present | 340hp | Europe, USA, Asia |
| Audi Q7 | 4M | 2016-present | 340hp | Europe, USA |
Сумісні трансмісії: 7-speed S tronic, 8-speed Tiptronic
Типи приводу: AWD
Fuel Economy
| Fuel Type | Petrol 95 |
| Octane Rating | Мінімум: 95 | Рекомендовано: 98 |
| Consumption (City) | 11 л/100км |
| Consumption (Highway) | 7 л/100км |
| Consumption (Combined) | 8.5 л/100км |
| Real Consumption | 9.5 л/100км |
| Fuel Tank Capacity | 73 л |
| Range | 860 км |
| Cost per 100 km | 15-20 USD |
Emissions Standards
| Emission Standard | Euro 6 |
| CO₂ Emissions | 195 г/км |
| Particulate Filter (DPF) | Absent |
| AdBlue | Not Required |
Нагороди та визнання
- Ward's 10 Best Engines (2019) — 3.0L V6 Turbo
Порівняння з конкурентами
| Двигун | Бренд | Об'єм | Потужність | Крутний момент |
|---|---|---|---|---|
| B58 | BMW | 2,998 см³ | 382 л.с. | 500 Н*м |
| M276 | Mercedes-Benz | 2,996 см³ | 362 л.с. | 500 Н*м |
Переваги
- Advanced turbocharging technology
- Efficient fuel consumption for a V6
- Smooth power delivery
Недоліки
- Potential for carbon buildup
- Complexity of the engine may lead to higher maintenance costs
Корисні ресурси
| Технічна документація | https://www.audi.com/technical-specs |
| Форуми та обговорення |
