EA897 Audi EA897

Дизельний V6 двигун з високою потужністю та ефективністю, оснащений системою Common Rail та турбонаддувом з змінною геометрією.

Brand: Audi Type: Diesel Configuration: V6 Production Years: 2014 - теперішній час Production: Győr, Hungary
73 Brand engines
25 Modifications

Technical Specifications

Engine Displacement 3.0 L (2,967 cc)
Configuration V6
Number of Cylinders 6
Valves per Cylinder 4
Power 218 - 286 л.с.
Torque 500 - 620 Н*м
Cylinder Bore 83.00 mm
Piston Stroke 91.40 mm
Compression Ratio 16.8:1
Firing Order 1-4-3-6-2-5
Fuel System Common Rail Direct Injection
Aspiration Turbocharged
Turbocharger Variable geometry turbocharger
Intercooler Yes
Maximum RPM 5,000 rpm
Max Torque RPM 1,400 rpm
Valve Train DOHC
Timing Drive Chain
Timing Chain Replacement 250000 or as needed
Block Material Aluminum
Head Material Aluminum
Lubrication System Pressure lubrication
Cooling System Liquid cooling

Additional Information

Engine Family EA897 V6 TDI
Manufacturing Plant Győr, Hungary
Predecessor EA896

Maintenance

Engine Oil Capacity 7.7 L (with filter: 8 L)
Recommended Viscosity 5W-30
Oil Standard VW 507 00
Recommended Brands Castrol Edge, Mobil 1, Shell Helix
Oil Change Interval 15 000 km or 12 mo
Oil Filter 059115562
Air Filter 4G0133843
Replace every 60 000 km
Fuel filter 4G0201511
Cabin Filter 4G0819439
Spark Plugs
Coolant Capacity 12 L
Coolant Type G13 (Audi Coolant)
Coolant Change Interval 240 000 km
Thermostat Opening Temperature 87°C
Operating Temperature 90°C
Max Operating Temperature 110°C
Critical Temperature 120°C
Annual Maintenance Cost 1000-1500 USD

Reliability

Reliability rating: 8/10

Expected lifespan: 350 000 km

Common problems

Problem Severity Mileage Repair cost
EGR valve failure Medium 100000-150000 km $500-1000
DPF clogging High 120000-180000 km $1500-2500

Known defects

  • Oil consumption issues in early models
  • Turbocharger actuator failures

Warranty extensions

  • Extended warranty for emissions components up to 10 years/120000 miles

Tuning potential

Tuning potential: Medium | Max. safe power: 400 hp

Stage Power Torque Method Cost
Stage 1 280 hp 700 Nm ECU remap only
Reliability impact: Minimal 		$600
Stage 2 320 hp 750 Nm ECU, Downpipe, Intake
Required: Upgraded intercooler, ECU remap
Reliability impact: Low 		$2500
Stage 3 380 hp 800 Nm Hybrid Turbo, Injectors
Required: Bigger turbo, Upgraded fuel system, ECU remap
Reliability impact: Medium 		$8000

Popular modifications

  • ECU tune
  • Upgraded intercooler
  • Exhaust system upgrade

Tuning limitations

  • DPF and emissions compliance
  • Turbocharger limits without upgrade

Cars with the EA897 engine

This engine was fitted to 13 models

Photo Brand Model Generation Production years
A4 (B9, 8W) Audi A4 A4 (B9, 8W) 2015 - present
A6 (C9) Audi A6 A6 (C9) 2025 - present
Q8 Sportback e-tron Audi Q8 Sportback e-tron Q8 Sportback e-tron 2023 - present

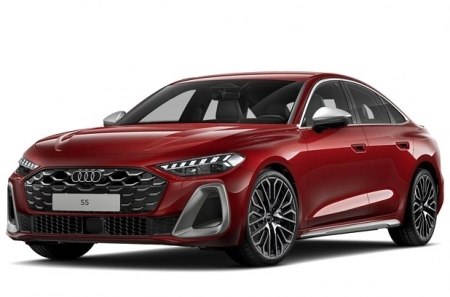

S5 II (F5) Audi S5 S5 II (F5) 2016 - 2025
S6 V (C8) Audi S6 S6 V (C8) 2019 - present
SQ5 II (FY) Audi SQ5 SQ5 II (FY) 2017 - 2025
SQ5 III (GU) Audi SQ5 SQ5 III (GU) 2024 - present
SQ5 Sportback II (GU) Audi SQ5 Sportback SQ5 Sportback II (GU) 2025 - present
SQ7 Audi SQ7 SQ7 2016 - present
SQ8 Audi SQ8 SQ8 2019 - present
SQ8 e-tron Audi SQ8 e-tron SQ8 e-tron 2023 - present
SQ8 Sportback e-tron Audi SQ8 Sportback e-tron SQ8 Sportback e-tron 2023 - present
No photo
 Volkswagen Amarok Amarok 2010 - present
No photo
 Audi A6 allroad A6 allroad (C8) 2019 - present

All modifications (25)

Vehicle Generation Modification Power Gearbox Drive
Audi A4 A4 (B9, 8W) 50 TDI 3.0 TDI 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi A6 A6 (C9) 50 TDI 3.0 TDI 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi Q8 Sportback e-tron Q8 Sportback e-tron Q8 Sportback 50 TDI 3.0 V6 286 к.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi S5 S5 II (F5) 3.0 TDI 6-циліндровий 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi S5 S5 II (F5) 3.0 TDI 6-циліндровий 286 л.с. 7 S-tronic 4x4 286 hp 7 S-tronic 4x4
Audi S6 S6 V (C8) V6 3.0 TDI 348 л.с. 8-Автомат 4x4 348 hp 8-Автомат 4x4
Audi S6 S6 V (C8) V6 3.0 TDI 348 л.с. 7 S-tronic 4x4 348 hp 7 S-tronic 4x4
Audi SQ5 SQ5 II (FY) 40 TDI 3.0 TDI 231 л.с. 8-Автомат 4x4 231 hp 8-Автомат 4x4
Audi SQ5 SQ5 II (FY) 40 TDI 3.0 TDI 231 л.с. 7 S-tronic 4x4 231 hp 7 S-tronic 4x4
Audi SQ5 SQ5 III (GU) 3.0 TDI 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi SQ5 SQ5 III (GU) 3.0 TDI 286 л.с. 7 S-tronic 4x4 286 hp 7 S-tronic 4x4
Audi SQ5 Sportback SQ5 Sportback II (GU) 50 TDI 3.0 TDI 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi SQ7 SQ7 4.0 TDI V8 429 л.с. 8-Автомат 4x4 429 hp 8-Автомат 4x4
Audi SQ7 SQ7 4.0 TDI V8 429 л.с. 8-Автомат 2WD 429 hp 8-Автомат 2WD
Audi SQ8 SQ8 3.0 TDI V6 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4
Audi SQ8 SQ8 3.0 TDI V6 286 л.с. 8-Автомат 2WD 286 hp 8-Автомат 2WD
Audi SQ8 e-tron SQ8 e-tron SQ8 e-tron 4.0 TDI 400 л.с. 8-Автомат 4x4 400 hp 8-Автомат 4x4
Audi SQ8 e-tron SQ8 e-tron SQ8 e-tron 4.0 TDI 400 л.с. 7-DSG 4x4 400 hp 7-DSG 4x4
Audi SQ8 e-tron SQ8 e-tron SQ8 e-tron 4.0 TDI 350 л.с. 8-Автомат 4x4 350 hp 8-Автомат 4x4
Audi SQ8 e-tron SQ8 e-tron SQ8 e-tron 4.0 TDI 350 л.с. 7-DSG 4x4 350 hp 7-DSG 4x4
Audi SQ8 Sportback e-tron SQ8 Sportback e-tron 3.0 TDI V6 349 л.с. 8-Автомат 4x4 349 hp 8-Автомат 4x4
Audi SQ8 Sportback e-tron SQ8 Sportback e-tron 3.0 TDI V6 349 л.с. 8-Автомат 2WD 349 hp 8-Автомат 2WD
Volkswagen Amarok Amarok 3.0 TDI 204 л.с. 8-Автомат 4x4 204 hp 8-Автомат 4x4
Volkswagen Amarok Amarok 3.0 TDI 204 л.с. 6-МКП 4x4 204 hp 6-МКП 4x4
Audi A6 allroad A6 allroad (C8) 50 TDI 3.0 TDI 286 л.с. 8-Автомат 4x4 286 hp 8-Автомат 4x4

Interesting Facts

  • First Audi V6 TDI engine with variable geometry turbocharger
  • Features advanced emissions control systems

Applications

Total produced: unknown

Vehicle Generation Years Power Markets
Audi A6 C7 2011-2018 204hp/245hp Europe, USA
Audi Q7 4M 2015-present 272hp Europe, USA

Compatible transmissions: 7-speed S tronic, 8-speed Tiptronic

Drive types: AWD

Fuel Economy

Fuel Type Diesel
Consumption (City) 8.5 L/100km
Consumption (Highway) 6 L/100km
Consumption (Combined) 7 L/100km
Real Consumption 7.5 L/100km
Fuel Tank Capacity 75 L
Range 1,071 km
Cost per 100 km 10-12 USD

Emissions Standards

Emission Standard Euro 6
CO₂ Emissions 179 g/km
Particulate Filter (DPF) Present
Regeneration every 500 km
AdBlue Required
Consumption: 1.5 L/1000km

Awards and Recognition

  • Engine of the Year (2014) — 2.5L to 3.0L

Comparison with competitors

Engine Brand Displacement Power Torque
OM642 Mercedes-Benz 2,987 cc 258 hp 620 Nm
N57D30 BMW 2,993 cc 313 hp 630 Nm

Pros

  • Strong torque delivery
  • Efficient fuel consumption
  • Advanced emissions control

Cons

  • Complex emissions system
  • Potential for high repair costs
