1GR-FE Toyota 1GR-FE
3.9-літровий V6 двигун Toyota 1GR-FE, відомий своєю надійністю та довговічністю, використовується в багатьох моделях позашляховиків та пікапів.
74
Brand engines
20
Modifications
Technical Specifications
| Engine Displacement | 3.9 L (3,956 cc) |
| Configuration | V6 |
| Number of Cylinders | 6 |
| Valves per Cylinder | 4 |
| Power | 236 - 270 л.с. |
| Torque | 360 - 400 Н*м |
| Cylinder Bore | 94.00 mm |
| Piston Stroke | 83.00 mm |
| Compression Ratio | 10.0:1 |
| Firing Order | 1-2-3-4-5-6 |
| Fuel System | Multi-point Fuel Injection |
| Aspiration | Naturally Aspirated |
| Intercooler | No |
| Maximum RPM | 5,600 rpm |
| Max Torque RPM | 3,800 rpm |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 200000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Engine Weight | 190 kg |
| Dimensions (L×W×H) | 700 × 600 × 600 mm |
| Lubrication System | Wet sump |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | GR engine family |
| Manufacturing Plant | Toyota City, Japan |
Maintenance
| Engine Oil Capacity | 6.5 L (with filter: 7 L) |
| Recommended Viscosity | 5W-30, 10W-30 |
| Oil Standard | API SN, ILSAC GF-5 |
| Recommended Brands | Toyota Genuine Oil, Mobil 1, Castrol Edge |
| Oil Change Interval | 10 000 km or 12 mo |
| Oil Filter | 90915-YZZD3 |
| Air Filter |
17801-0P010
Replace every 30 000 km |
| Spark Plugs |
Type: Iridium Part number: 90919-01250Gap: 1.1 mm Quantity: 6 pcs Replace every 100 000 km |
| Coolant Capacity | 10 L |
| Coolant Type | Toyota Super Long Life Coolant (Toyota) |
| Coolant Change Interval | 160 000 km |
| Thermostat Opening Temperature | 82°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 110°C |
| Critical Temperature | 120°C |
| Annual Maintenance Cost | 600-800 USD |
Reliability
Expected lifespan: 300 000 km
Common problems
| Problem | Severity | Mileage | Repair cost |
|---|---|---|---|
| Oil consumption issues in early models | Medium | 100000-150000 km | $500-1000 |
| Timing chain noise | Low | 150000-200000 km | $300-500 |
Known defects
- Some early models had issues with oil consumption
- Timing chain tensioner failures
Warranty extensions
- Toyota offers extended warranty options for engine issues
Tuning potential
Tuning potential: Medium | Max. safe power: 450 hp
| Stage | Power | Torque | Method | Cost |
|---|---|---|---|---|
| Stage 1 | 300 hp | 450 Nm |
ECU remap only Reliability impact: Minimal |
$600 |
| Stage 2 | 350 hp | 500 Nm |
ECU, Exhaust System Required: Cold air intake, High-performance exhaust Reliability impact: Low |
$1500 |
| Stage 3 | 400 hp | 550 Nm |
- Required: Supercharger kit, Upgraded fuel system Reliability impact: Medium-High |
$5000 |
Popular modifications
- ECU tuning
- Cold air intake
- Cat-back exhaust system
Tuning limitations
- Stock internals may limit power gains
- Cooling system upgrades recommended for high power
Детальні технічні характеристики
50
модифікацій
228–282
к.с.
Спільні характеристики
| Boost type | none |
| Car class | J |
| Country | Japan |
| Cylinder layout | V-type |
| Engine code | 1GR-FE |
| Engine placement | Front, longitudinal |
| Engine type | Gasoline |
| Number of cylinders | 6 |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
4.0 AT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1420 mm
Clearance
200 mm
Front track width
1515 mm
Height
1970 mm
Length
5235 mm
Number of doors
2
Wheelbase
3180 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Pickup
Number of seater
2
4.0 AT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
228 hp
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Max power (kW)
168 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1420 mm
Clearance
200 mm
Front track width
1515 mm
Height
1960 mm
Length
5235 mm
Number of doors
4
Wheelbase
3180 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Pickup
Number of seater
5
4.0 AT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
228 hp
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Max power (kW)
168 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1420 mm
Clearance
235 mm
Curb weight
2095 kg
Front track width
1515 mm
Full weight
3200 kg
Height
2115 mm
Length
5140 mm
Number of doors
3
Wheelbase
2980 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
225/95 R16
other
Body type
Crossover
Number of seater
9, 11
4.0 AT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
228 hp
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Max power (kW)
168 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Clearance
200 mm
Height
1910 mm
Length
4235 mm
Number of doors
3
Wheelbase
2310 mm
Width
1870 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Crossover
Number of seater
5
4.0 AT AWD (228 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine power
228 hp
Fuel tank capacity
130 l
Injection type
distributed injection (multipoint)
Max power (kW)
168 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1460 mm
Clearance
200 mm
Front track width
1555 mm
Height
1920 mm
Length
4890 mm
Number of doors
5
Wheelbase
2730 mm
Width
1870 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Crossover
Number of seater
5
4.0 MT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1420 mm
Clearance
200 mm
Front track width
1515 mm
Height
1970 mm
Length
5235 mm
Number of doors
2
Wheelbase
3180 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Pickup
Number of seater
2
4.0 MT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
228 hp
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Max power (kW)
168 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
Mixed driving fuel consumption per 100 km
7.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Clearance
200 mm
Height
1910 mm
Length
4235 mm
Number of doors
3
Wheelbase
2310 mm
Width
1870 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Crossover
Number of seater
5
4.0 MT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Fuel tank capacity
130 l
Injection type
distributed injection (multipoint)
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
Mixed driving fuel consumption per 100 km
7.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1420 mm
Clearance
316 mm
Curb weight
2160 kg
Front track width
1515 mm
Full weight
3200 kg
Height
1960 mm
Length
5235 mm
Number of doors
4
Wheelbase
3180 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/70 R16
other
Body type
Pickup
Number of seater
5
4.0 MT 4WD (228 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 70 Series [2th restyling]
2023–2026
228 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Fuel tank capacity
90 l
Injection type
distributed injection (multipoint)
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1420 mm
Clearance
235 mm
Curb weight
2095 kg
Front track width
1515 mm
Full weight
3200 kg
Height
2115 mm
Length
5140 mm
Number of doors
3
Wheelbase
2980 mm
Width
1790 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Dependent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
225/95 R16
other
Body type
Crossover
Number of seater
9, 11
4.0 AT 4WD (275 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 300 Series
2021–2026
275 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
275 hp
Fuel tank capacity
110 l
Injection type
distributed injection (multipoint)
Max power (kW)
202 kW
Max power at RPM
5600 RPM
Maximum torque
385 N*m
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
10.7 s
Max speed
190 km/h
fuel
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
9.3 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Clearance
312 mm
Curb weight
2375 kg
Full weight
3120 kg
Height
1950 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1980 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/55 R20, 265/65 R18
other
Body type
Crossover
Disc size
7.5x18 ET60, 8x20 ET60
Number of seater
5, 7
Pitch Circle Diameter
DIA95.1 6x139.7 mm
4.0 AT 4WD (238 hp)
Привід All wheel drive (AWD)
КПП Automatic

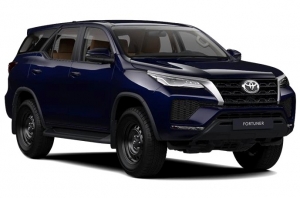

Fortuner 2 [рест.]
2020–2026
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1GR-FE
Engine power
238 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Max trunk capacity
1000 l
Maximum torque
376 N*m
Min trunk capacity
200 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
fuel
Emission standards
Euro 5
Fuel
92
Mixed driving fuel consumption per 100 km
10.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
225 mm
Curb weight
2060 kg
Front track width
1545 mm
Full weight
2650 kg
Height
1835 mm
Length
4795 mm
Number of doors
5
Wheelbase
2745 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
265/60 R18, 265/65 R17
other
Body type
Crossover
Disc size
7.5x17 ET30, 7.5x18 ET30, 8x19 ET30, 8x20 ET30
Number of seater
7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (238 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 8 [2th restyling]
2020–2026
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
238 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.4 s
Max speed
180 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
92
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
227 mm
Front track width
1540 mm
Full weight
2870 kg
Height
1815 mm
Length
5325 mm
Number of doors
4
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Wheel size
265/65 R17
other
Body type
Pickup
Disc size
6x16 ET45, 6x17 ET50, 7.5x17 ET30, 7.5x18 ET30
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (249 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [3th restyling]
2020–2024
249 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
249 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
183 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
381 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.7 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
CO2 emissions
256 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Curb weight
2150 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 7.5x19 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [3th restyling]
2020–2024
271 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1GR-FE
Engine power
271 hp
Fuel tank capacity
150 l
Injection type
distributed injection (multipoint)
Max power (kW)
202 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
381 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.2 s
Max speed
175 km/h
fuel
Fuel
95
Mixed driving fuel consumption per 100 km
10.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2950 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/60 R18, 265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (282 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [3th restyling]
2020–2024
282 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1GR-FE
Engine power
282 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
207 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.2 s
Max speed
175 km/h
fuel
CO2 emissions
261 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
11.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Front track width
1585 mm
Full weight
2900 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
245/70 R17, 265/60 R18, 265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (238 hp)
Привід All wheel drive (AWD)
КПП Automatic
Fortuner 2 [рест.]
2020–2026
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine power
238 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Max trunk capacity
1000 l
Maximum torque
376 N*m
Min trunk capacity
200 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
fuel
Emission standards
Euro 5
Fuel
92
Mixed driving fuel consumption per 100 km
10.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
225 mm
Curb weight
2060 kg
Front track width
1545 mm
Full weight
2650 kg
Height
1835 mm
Length
4795 mm
Number of doors
5
Wheelbase
2745 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
265/60 R18, 265/65 R17
other
Body type
Crossover
Number of seater
7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (238 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 8 [2th restyling]
2020–2026
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine power
238 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.4 s
Max speed
180 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
92
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
227 mm
Front track width
1540 mm
Full weight
2870 kg
Height
1815 mm
Length
5325 mm
Number of doors
4
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Wheel size
265/65 R17
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (249 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [3th restyling]
2020–2024
249 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
249 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
183 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
381 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.7 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
CO2 emissions
256 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Curb weight
2150 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [3th restyling]
2020–2024
271 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
271 hp
Fuel tank capacity
150 l
Injection type
distributed injection (multipoint)
Max power (kW)
202 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
381 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.2 s
Max speed
175 km/h
fuel
Fuel
95
Mixed driving fuel consumption per 100 km
10.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2950 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/60 R18, 265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado J150 [2th restyling]
2017–2020
271 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1GR-FE
Engine power
271 hp
Fuel tank capacity
150 l
Injection type
distributed injection (multipoint)
Max power (kW)
199 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Max speed
180 km/h
fuel
CO2 emissions
256 g/km
Emission standards
Euro 4
Fuel
95
Mixed driving fuel consumption per 100 km
10.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Front track width
1585 mm
Full weight
2950 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (249 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado J150 [2th restyling]
2013–2020
249 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
249 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
183 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
381 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.7 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
CO2 emissions
256 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Front track width
1585 mm
Ground clearance
215 mm
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Front track
1585 mm
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
Rear track
1585 mm
Turning circle
11.6 m
4.0 AT AWD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado J150 [2th restyling]
2017–2020
271 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
271 hp
Fuel tank capacity
150 l
Injection type
distributed injection (multipoint)
Max power (kW)
199 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Max speed
180 km/h
fuel
CO2 emissions
256 g/km
Emission standards
Euro 4
Fuel
95
Mixed driving fuel consumption per 100 km
10.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Front track width
1585 mm
Full weight
2950 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 MT (271 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser Prado J150 [2th restyling]
2017–2020
271 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1GR-FE
Fuel tank capacity
150 l
Injection type
distributed injection (multipoint)
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Max speed
180 km/h
fuel
City driving fuel consumption per 100 km
14.7 l
CO2 emissions
256 g/km
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
8.6 l
Mixed driving fuel consumption per 100 km
10.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
215 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1845 mm
Length
4840 mm
Number of doors
5
Wheelbase
2790 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT (238 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 8
2015–2020
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe v6
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Maximum torque
376 N*m
Min trunk capacity
1053 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3700 RPM
performance
Acceleration (0-100 km/h)
10.7 s
Max speed
175 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
212 mm
Curb weight
2230 kg
Front track width
1540 mm
Full weight
2910 kg
Height
1815 mm
Length
5330 mm
Number of doors
4
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (238 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 8
2015–2020
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe v6
Engine power
238 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Min trunk capacity
1053 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3700 RPM
performance
Acceleration (0-100 km/h)
9.4 s
Max speed
180 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
212 mm
Front track width
1540 mm
Full weight
2910 kg
Height
1820 mm
Length
5335 mm
Number of doors
2
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Disc size
6x16 ET45, 6x17 ET50, 7.5x17 ET30, 7.5x18 ET30
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 200 Series [2th restyling]
2015–2021
271 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
271 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
201 kW
Max power at RPM
5600 RPM
Max trunk capacity
909 l
Maximum torque
385 N*m
Min trunk capacity
259 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
8.5 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
16.7 l
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
9.8 l
Mixed driving fuel consumption per 100 km
12.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1645 mm
Clearance
230 mm
Curb weight
2640 kg
Front track width
1650 mm
Full weight
3300 kg
Height
1955 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1980 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT AWD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 200 Series [2th restyling]
2015–2021
271 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine power
271 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
201 kW
Max power at RPM
5600 RPM
Max trunk capacity
909 l
Maximum torque
385 N*m
Min trunk capacity
259 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
8.5 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
16.7 l
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
9.8 l
Mixed driving fuel consumption per 100 km
12.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1645 mm
Clearance
230 mm
Curb weight
2640 kg
Front track width
1650 mm
Full weight
3300 kg
Height
1955 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1980 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA110 5x150 mm
4.0 MT (238 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 8
2015–2020
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe v6
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Maximum torque
376 N*m
Min trunk capacity
1053 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3700 RPM
performance
Acceleration (0-100 km/h)
10.7 s
Max speed
175 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
212 mm
Curb weight
2230 kg
Front track width
1540 mm
Full weight
2910 kg
Height
1815 mm
Length
5330 mm
Number of doors
4
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 MT 4WD (238 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 8
2015–2020
238 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe v6
Engine power
238 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
175 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Min trunk capacity
1053 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3700 RPM
performance
Acceleration (0-100 km/h)
9.4 s
Max speed
180 km/h
fuel
CO2 emissions
279 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
11.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
212 mm
Front track width
1540 mm
Full weight
2910 kg
Height
1820 mm
Length
5335 mm
Number of doors
2
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Disc size
6x16 ET45, 6x17 ET50, 7.5x17 ET30, 7.5x18 ET30
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 MT 4WD (271 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 200 Series [2th restyling]
2015–2021
271 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
271 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
201 kW
Max power at RPM
5600 RPM
Max trunk capacity
909 l
Maximum torque
385 N*m
Min trunk capacity
259 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
fuel
Emission standards
Euro 4
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1645 mm
Clearance
230 mm
Front track width
1650 mm
Full weight
3300 kg
Height
1955 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1980 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT (270 hp)
Привід Rear wheel drive
КПП Automatic
Tundra 2 [рест.]
2013–2021
270 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94 mm
Engine model
1gr-fe
Engine power
270 hp
Injection type
distributed injection (multipoint)
Max power (kW)
199 kW
Max power at RPM
5600 RPM
Maximum torque
376 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4400 RPM
fuel
City driving fuel consumption per 100 km
14.7 l
Fuel
98
Highway driving fuel consumption per 100 km
11.8 l
Mixed driving fuel consumption per 100 km
13.8 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1725 mm
Clearance
260 mm
Front track width
1725 mm
Full weight
3260 kg
Height
1935 mm
Length
6294 mm
Number of doors
4
Wheelbase
4181 mm
Width
2029 mm
suspension
Front brakes
Disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
255/70 R18, 275/55 R20
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT (270 hp)
Привід Rear wheel drive
КПП Automatic
Tundra 2 [рест.]
2013–2021
270 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94 mm
Fuel tank capacity
120 l
Injection type
distributed injection (multipoint)
Maximum torque
376 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4400 RPM
fuel
City driving fuel consumption per 100 km
14.7 l
Highway driving fuel consumption per 100 km
11.8 l
Mixed driving fuel consumption per 100 km
13.8 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
5
dimensions
Clearance
264 mm
Height
1935 mm
Length
5814 mm
Number of doors
4
Wheelbase
3701 mm
Width
2029 mm
suspension
Front brakes
Disc
Front suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
Wheel size
255/70 R18, 275/55 R20
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT (273 hp)
Привід All wheel drive (AWD)
КПП Automatic
4Runner 5 [рест.]
2013–2024
273 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
273 hp
Fuel tank capacity
87 l
Injection type
direct injection (direct)
Max power (kW)
201 kW
Max power at RPM
5600 RPM
Max trunk capacity
2514 l
Maximum torque
377 N*m
Min trunk capacity
1311 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
fuel
City driving fuel consumption per 100 km
13.8 l
Fuel
95
Highway driving fuel consumption per 100 km
11.2 l
Mixed driving fuel consumption per 100 km
13.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1605 mm
Clearance
229 mm
Curb weight
2121 kg
Front track width
1605 mm
Full weight
2858 kg
Height
1781 mm
Length
4831 mm
Number of doors
5
Wheelbase
2789 mm
Width
1925 mm
suspension
Back suspension
Independent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/60 R20, 265/70 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
4.0 AT 4WD (249 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
249 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1GR-FE
Engine power
249 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
183 kW
Max power at RPM
5200 RPM
Max trunk capacity
1850 l
Maximum torque
380 N*m
Min trunk capacity
620 l
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.5 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
18.2 l
Fuel
95
Highway driving fuel consumption per 100 km
10.8 l
Mixed driving fuel consumption per 100 km
13.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1739 mm
Clearance
276 mm
Curb weight
2000 kg
Front track width
1739 mm
Full weight
2900 kg
Height
2000 mm
Length
4850 mm
Number of doors
5
Wheelbase
2790 mm
Width
2280 mm
suspension
Back suspension
Independent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
315/70 R17
other
Body type
Crossover
Number of seater
5, 7
4.0 AT 4WD (276 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
276 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
276 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
203 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.2 s
Max speed
180 km/h
fuel
City driving fuel consumption per 100 km
14.7 l
Emission standards
Euro 5
Fuel
98
Highway driving fuel consumption per 100 km
8.6 l
Mixed driving fuel consumption per 100 km
10.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1585 mm
Clearance
220 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1890 mm
Length
4780 mm
Number of doors
5
Wheelbase
2790 mm
Width
1885 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (282 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
282 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
282 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
207 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
CO2 emissions
248 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
220 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1890 mm
Length
4780 mm
Number of doors
5
Wheelbase
2790 mm
Width
1885 mm
suspension
Back suspension
Dependent, pneumatic element
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
10x17 ET52
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (249 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
249 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine power
249 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
183 kW
Max power at RPM
5200 RPM
Max trunk capacity
1850 l
Maximum torque
380 N*m
Min trunk capacity
620 l
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.5 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
18.2 l
Fuel
95
Highway driving fuel consumption per 100 km
10.8 l
Mixed driving fuel consumption per 100 km
13.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1739 mm
Clearance
276 mm
Curb weight
2000 kg
Front track width
1739 mm
Full weight
2900 kg
Height
2000 mm
Length
4850 mm
Number of doors
5
Wheelbase
2790 mm
Width
2280 mm
suspension
Back suspension
Independent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
315/70 R17
other
Body type
Crossover
Number of seater
5, 7
4.0 AT AWD (282 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
282 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
282 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
207 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
175 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
CO2 emissions
248 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1585 mm
Clearance
220 mm
Curb weight
2125 kg
Front track width
1585 mm
Full weight
2900 kg
Height
1890 mm
Length
4780 mm
Number of doors
5
Wheelbase
2790 mm
Width
1885 mm
suspension
Back suspension
Dependent, pneumatic element
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT AWD (282 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser Prado 150 Series [рест.]
2013–2017
282 hp
engine
Capacity
3956 cm3
Compression ratio
10.4
Cylinder bore
94.0 mm
Engine power
282 hp
Fuel tank capacity
87 l
Injection type
distributed injection (multipoint)
Max power (kW)
207 kW
Max power at RPM
5600 RPM
Max trunk capacity
1934 l
Maximum torque
387 N*m
Min trunk capacity
621 l
Stroke cycle
95.0 mm
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
9.2 s
Max speed
120 km/h
fuel
City driving fuel consumption per 100 km
14.5 l
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
8.4 l
Mixed driving fuel consumption per 100 km
10.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1740 mm
Clearance
315 mm
Curb weight
2250 kg
Front track width
1740 mm
Full weight
2900 kg
Height
1955 mm
Length
4780 mm
Number of doors
5
Wheelbase
2815 mm
Width
2070 mm
suspension
Back suspension
Dependent, pneumatic element
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
315/70 R17
other
Body type
Crossover
Number of seater
5, 7
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT 4WD (243 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 200 Series [рест.]
2012–2015
243 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe
Engine power
243 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
179 kW
Max power at RPM
5200 RPM
Max trunk capacity
1267 l
Maximum torque
376 N*m
Min trunk capacity
701 l
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
10.0 s
Max speed
200 km/h
fuel
City driving fuel consumption per 100 km
16.7 l
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
9.8 l
Mixed driving fuel consumption per 100 km
12.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1635 mm
Clearance
225 mm
Curb weight
2640 kg
Front track width
1640 mm
Full weight
3300 kg
Height
1950 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1970 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
7, 5
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT 4WD (271 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 200 Series [рест.]
2012–2015
271 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine model
1gr-fe
Engine power
271 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
201 kW
Max power at RPM
5600 RPM
Max trunk capacity
1267 l
Maximum torque
385 N*m
Min trunk capacity
701 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
fuel
City driving fuel consumption per 100 km
16.7 l
Emission standards
Euro 4
Fuel
95
Highway driving fuel consumption per 100 km
9.8 l
Mixed driving fuel consumption per 100 km
12.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1635 mm
Clearance
225 mm
Curb weight
2640 kg
Front track width
1640 mm
Full weight
3300 kg
Height
1950 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1970 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
7, 5
Pitch Circle Diameter
DIA110 5x150 mm
4.0 MT 4WD (243 hp)
Привід All wheel drive (AWD)
КПП Manual
Land Cruiser 200 Series [рест.]
2012–2015
243 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe
Engine power
243 hp
Fuel tank capacity
93 l
Injection type
distributed injection (multipoint)
Max power (kW)
179 kW
Max power at RPM
5200 RPM
Max trunk capacity
1267 l
Maximum torque
376 N*m
Min trunk capacity
701 l
Stroke cycle
95 mm
Turnover of maximum torque
3800 RPM
fuel
Emission standards
Euro 4
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1635 mm
Clearance
225 mm
Curb weight
2640 kg
Front track width
1640 mm
Full weight
3300 kg
Height
1950 mm
Length
4950 mm
Number of doors
5
Wheelbase
2850 mm
Width
1970 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Crossover
Disc size
6.5x17 ET15, 7.5x17 ET25, 7.5x18 ET25, 8.5x20 ET25
Number of seater
7, 5
Pitch Circle Diameter
DIA110 5x150 mm
4.0 AT (236 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 7 [рест.]
2011–2015
236 hp
engine
Capacity
3955 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Maximum torque
361 N*m
Min trunk capacity
1053 l
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
212 mm
Front track width
1540 mm
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 AT (236 hp)
Привід All wheel drive (AWD)
КПП Automatic
Tacoma 2 [рест.]
2011–2015
236 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Engine power
236 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
174 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
8.2 s
fuel
City driving fuel consumption per 100 km
14.7 l
Fuel
95
Highway driving fuel consumption per 100 km
11.2 l
Mixed driving fuel consumption per 100 km
13.4 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1549 mm
Clearance
231 mm
Curb weight
1860 kg
Front track width
1549 mm
Full weight
2495 kg
Height
1679 mm
Length
5286 mm
Number of doors
2
Wheelbase
3236 mm
Width
1834 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
other
Body type
Pickup
Number of seater
4
4.0 AT 4x4 L2 (236 hp)
Привід All wheel drive (AWD)
КПП Automatic
Tacoma 2 [рест.]
2011–2015
236 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Engine power
236 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
174 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
8.2 s
fuel
City driving fuel consumption per 100 km
14.7 l
Cruising range
from 540 to 680 km
Fuel
95
Highway driving fuel consumption per 100 km
11.2 l
Mixed driving fuel consumption per 100 km
13.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1549 mm
Cargo compartment (Length x Width x Height)
1867x1440x457 mm
Clearance
231 mm
Curb weight
1898 kg
Front track width
1549 mm
Full weight
2495 kg
Ground clearance
236 mm
Height
1679 mm
Length
5286 mm
Number of doors
4
Wheelbase
3236 mm
Width
1895 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Trailer load (with brakes)
3674 kg
Wheel size
245/75 R16
other
Body type
Pickup
Front track
1600 mm
Number of seater
5
Payload
572 kg
Pitch Circle Diameter
DIA106.1 6x139.7 mm
Rear track
1610 mm
Turning circle
13.4 m
4.0 AT AWD (235 hp)
Привід All wheel drive (AWD)
КПП Automatic
Fortuner 1 [2th restyling]
2011–2015
235 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine power
235 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
173 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Min trunk capacity
296 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.5 s
Max speed
180 km/h
fuel
City driving fuel consumption per 100 km
17.1 l
Fuel
95
Highway driving fuel consumption per 100 km
10.2 l
Mixed driving fuel consumption per 100 km
12.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1800 kg
Front track width
1540 mm
Full weight
2510 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
4.0 AT RWD (235 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1 [2th restyling]
2011–2015
235 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94.0 mm
Engine power
235 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
173 kW
Max power at RPM
5200 RPM
Maximum torque
376 N*m
Min trunk capacity
296 l
Stroke cycle
95.0 mm
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
9.5 s
Max speed
180 km/h
fuel
City driving fuel consumption per 100 km
17.1 l
Fuel
95
Highway driving fuel consumption per 100 km
10.2 l
Mixed driving fuel consumption per 100 km
12.7 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2410 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
4.0 MT (236 hp)
Привід All wheel drive (AWD)
КПП Manual
Tacoma 2 [рест.]
2011–2015
236 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Engine power
236 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
174 kW
Max power at RPM
5200 RPM
Maximum torque
361 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
8.2 s
fuel
City driving fuel consumption per 100 km
15.7 l
Cruising range
from 510 to 650 km
Fuel
95
Highway driving fuel consumption per 100 km
12.4 l
Mixed driving fuel consumption per 100 km
14.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1549 mm
Cargo compartment (Length x Width x Height)
1867x1440x457 mm
Clearance
215 mm
Curb weight
1848 kg
Front track width
1549 mm
Full weight
2495 kg
Ground clearance
191 mm
Height
1679 mm
Length
5286 mm
Number of doors
2
Wheelbase
3236 mm
Width
1834 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Trailer load (with brakes)
3720 kg
other
Body type
Pickup
Front track
1580 mm
Number of seater
4
Payload
399 kg
Rear track
1580 mm
Turning circle
12.8 m
4.0 MT (236 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
236 hp
engine
Capacity
3955 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Maximum torque
361 N*m
Min trunk capacity
1053 l
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
fuel
Fuel
95
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
212 mm
Front track width
1540 mm
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
4.0 MT 4x4 L1 (236 hp)
Привід All wheel drive (AWD)
КПП Manual
Tacoma 2 [рест.]
2011–2015
236 hp
engine
Capacity
3956 cm3
Compression ratio
10
Cylinder bore
94 mm
Engine model
1gr-fe v6
Engine power
236 hp
Fuel tank capacity
80 l
Injection type
distributed injection (multipoint)
Max power (kW)
174 kW
Max power at RPM
5200 RPM
Maximum torque
360 N*m
Stroke cycle
95 mm
Turnover of maximum torque
4000 RPM
performance
Acceleration (0-100 km/h)
8.2 s
fuel
City driving fuel consumption per 100 km
15.6 l
Cruising range
from 480 to 620 km
Fuel
95
Highway driving fuel consumption per 100 km
12.4 l
Mixed driving fuel consumption per 100 km
14.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1549 mm
Cargo compartment (Length x Width x Height)
1531x1440x457 mm
Clearance
231 mm
Curb weight
1887 kg
Front track width
1549 mm
Full weight
2495 kg
Ground clearance
236 mm
Height
1679 mm
Length
5286 mm
Number of doors
4
Wheelbase
3236 mm
Width
1895 mm
suspension
Back suspension
Dependent, spring
Front brakes
ventilated disc
Front suspension
Independent, spring
Rear brakes
drum
Steering wheel position
Left
Trailer load (with brakes)
3674 kg
Wheel size
245/75 R16
other
Body type
Pickup
Front track
1600 mm
Number of seater
5
Payload
599 kg
Pitch Circle Diameter
DIA106.1 6x139.7 mm
Rear track
1610 mm
Turning circle
12.4 m
Cars with the 1GR-FE engine
This engine was fitted to 6 models
| Photo | Brand | Model | Generation | Production years |
|---|---|---|---|---|
|
Toyota | 4Runner | 4Runner | 1995 - 2009 |
|
Toyota | 4Runner | 4Runner V (N280) | 2009 - present |
|
No photo
|
Toyota | FJ Cruiser | FJ Cruiser | 2007 - 2016 |
|
Toyota | Fortuner | Fortuner | 2004 - 2015 |
|
Toyota | Hilux | Hilux | 2005 - 2015 |
|
No photo
|
Toyota | Land Cruiser Prado | Land Cruiser Prado | 2002 - 2009 |
|
Toyota | Tacoma | Tacoma | 2005 - 2015 |
All modifications (20)
| Vehicle | Generation | Modification | Power | Gearbox | Drive |
|---|---|---|---|---|---|
| Toyota 4Runner | 4Runner | 3.0 V6 183 л.с. 5-Автомат 2WD | 183 hp | 5-Автомат | 2WD |
| Toyota 4Runner | 4Runner | 3.0 V6 183 л.с. 5-Автомат 4x4 | 183 hp | 5-Автомат | 4x4 |
| Toyota 4Runner | 4Runner | 4.0 V6 245 л.с. 5-Автомат 2WD | 245 hp | 5-Автомат | 2WD |
| Toyota 4Runner | 4Runner | 4.0 V6 245 л.с. 5-Автомат 4x4 | 245 hp | 5-Автомат | 4x4 |
| Toyota 4Runner | 4Runner V (N280) | 4.0L V6 270 л.с. 6-МКП 2WD | 270 hp | 6-МКП | 2WD |
| Toyota 4Runner | 4Runner V (N280) | 4.0L V6 270 л.с. 5-Автомат 2WD | 270 hp | 5-Автомат | 2WD |
| Toyota 4Runner | 4Runner V (N280) | 4.0L V6 270 л.с. 6-МКП 4x4 | 270 hp | 6-МКП | 4x4 |
| Toyota 4Runner | 4Runner V (N280) | 4.0L V6 270 л.с. 5-Автомат 4x4 | 270 hp | 5-Автомат | 4x4 |
| Toyota FJ Cruiser | FJ Cruiser | 4.0 V6 270 л.с. 6-МКП 4x4 | 270 hp | 6-МКП | 4x4 |
| Toyota FJ Cruiser | FJ Cruiser | 4.0 V6 270 л.с. 5-Автомат 4x4 | 270 hp | 5-Автомат | 4x4 |
| Toyota Fortuner | Fortuner | 4.0 V6 275 л.с. 5-Автомат 4x4 | 275 hp | 5-Автомат | 4x4 |
| Toyota Fortuner | Fortuner | 4.0 V6 275 л.с. 6-Автомат 4x4 | 275 hp | 6-Автомат | 4x4 |
| Toyota Hilux | Hilux | 4.0 V6 278 л.с. 5-МКП 4x4 | 278 hp | 5-МКП | 4x4 |
| Toyota Hilux | Hilux | 4.0 V6 278 л.с. 6-Автомат 4x4 | 278 hp | 6-Автомат | 4x4 |
| Toyota Land Cruiser Prado | Land Cruiser Prado | 4.0 V6 275 л.с. 5-МКП 4x4 | 275 hp | 5-МКП | 4x4 |
| Toyota Land Cruiser Prado | Land Cruiser Prado | 4.0 V6 275 л.с. 5-Автомат 4x4 | 275 hp | 5-Автомат | 4x4 |
| Toyota Tacoma | Tacoma | 4.0L V6 236 л.с. 6-МКП 2WD | 236 hp | 6-МКП | 2WD |
| Toyota Tacoma | Tacoma | 4.0L V6 236 л.с. 5-Автомат 2WD | 236 hp | 5-Автомат | 2WD |
| Toyota Tacoma | Tacoma | 4.0L V6 236 л.с. 6-МКП 4x4 | 236 hp | 6-МКП | 4x4 |
| Toyota Tacoma | Tacoma | 4.0L V6 236 л.с. 5-Автомат 4x4 | 236 hp | 5-Автомат | 4x4 |
Interesting Facts
- The 1GR-FE is known for its durability and reliability.
- It has been used in various Toyota models across multiple markets.
Applications
Total produced: загальна кількість випущених двигунів
| Vehicle | Generation | Years | Power | Markets |
|---|---|---|---|---|
| Toyota Land Cruiser | J200 | 2007-2021 | 270hp | Global |
| Toyota 4Runner | Fifth Generation | 2010-Current | 270hp | North America |
| Toyota Tacoma | Third Generation | 2016-Current | 278hp | North America |
Compatible transmissions: 5-speed Automatic, 6-speed Automatic
Drive types: RWD, AWD
Fuel Economy
| Fuel Type | Petrol 95 |
| Octane Rating | Minimum: 91 | Recommended: 95 |
| Consumption (City) | 14 L/100km |
| Consumption (Highway) | 9 L/100km |
| Consumption (Combined) | 11.5 L/100km |
| Real Consumption | 12 L/100km |
| Fuel Tank Capacity | 80 L |
| Range | 695 km |
| Cost per 100 km | 15-20 USD |
Emissions Standards
| Emission Standard | Euro 4 |
| CO₂ Emissions | 270 g/km |
| Particulate Filter (DPF) | Absent |
| AdBlue | Not Required |
Comparison with competitors
| Engine | Brand | Displacement | Power | Torque |
|---|---|---|---|---|
| Nissan VK56DE | Nissan | 5,552 cc | 317 hp | 520 Nm |
| Ford 4.0L SOHC V6 | Ford | 3,986 cc | 245 hp | 400 Nm |
Pros
- High reliability and longevity
- Good power output for off-road applications
Cons
- Higher fuel consumption compared to newer engines
- Limited tuning potential without significant modifications
