F33A-FTV Toyota F33A-FTV
Сучасний 3.3-літровий дизельний двигун V6 з високою потужністю та ефективністю, оснащений системою Common Rail та турбонаддувом.
74
Brand engines
2
Modifications
Technical Specifications
| Engine Displacement | 3.3 L (2,999 cc) |
| Configuration | V6 |
| Number of Cylinders | 6 |
| Valves per Cylinder | 4 |
| Power | 175 - 200 л.с. |
| Torque | 450 - 500 Н*м |
| Cylinder Bore | 83.00 mm |
| Piston Stroke | 92.00 mm |
| Compression Ratio | 15.0:1 |
| Firing Order | 1-2-3-4-5-6 |
| Fuel System | Common Rail Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Single turbocharger |
| Intercooler | Yes |
| Maximum RPM | 4,000 rpm |
| Max Torque RPM | 1,600 rpm |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 200000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Engine Weight | 180 kg |
| Dimensions (L×W×H) | 800 × 600 × 700 mm |
| Lubrication System | Pressure lubrication |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | Toyota F engine series |
| Manufacturing Plant | Toyota City, Japan |
Maintenance
| Engine Oil Capacity | 8 L (with filter: 8.5 L) |
| Recommended Viscosity | 5W-30 |
| Oil Standard | ACEA C3, API SN |
| Recommended Brands | Toyota Genuine Oil, Mobil 1, Castrol Edge |
| Oil Change Interval | 15 000 km or 12 mo |
| Oil Filter | 90915-YZZD3 |
| Air Filter |
17801-0L040
Replace every 60 000 km |
| Spark Plugs | |
| Coolant Capacity | 9 L |
| Coolant Type | Toyota Long Life Coolant (Toyota Coolant) |
| Coolant Change Interval | 240 000 km |
| Thermostat Opening Temperature | 88°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 120°C |
| Critical Temperature | 130°C |
| Annual Maintenance Cost | 600-900 USD |
Reliability
Expected lifespan: 400 000 km
Common problems
| Problem | Severity | Mileage | Repair cost |
|---|---|---|---|
| Turbocharger failure | Medium | 150000-200000 km | $1000-1500 |
| EGR valve clogging | Low | 100000-150000 km | $300-500 |
Known defects
- Some early models had issues with injector seals
Warranty extensions
- Toyota offers extended warranty options for up to 10 years/150000 miles
Tuning potential
Tuning potential: Medium | Max. safe power: 350 hp
| Stage | Power | Torque | Method | Cost |
|---|---|---|---|---|
| Stage 1 | 220 hp | 550 Nm |
ECU remap only Reliability impact: Minimal |
$600 |
| Stage 2 | 260 hp | 600 Nm |
ECU, Downpipe, Intake Required: Upgraded intercooler, ECU remap Reliability impact: Low |
$1500 |
| Stage 3 | 300 hp | 700 Nm |
- Required: Bigger turbo, Forged internals, ECU remap Reliability impact: Medium |
$3000 |
Popular modifications
- ECU tune (Stage 1)
- Upgraded intercooler
- High-performance exhaust
Tuning limitations
- Turbo limitations above 300hp
- Cooling system upgrades recommended for higher stages
Детальні технічні характеристики
3
модифікацій
299–309
к.с.
Спільні характеристики
| Back suspension | Dependent, spring |
| Body type | Crossover |
| Boost type | Turbocharged |
| Capacity | 3346 cm3 |
| Car class | J |
| Compression ratio | 15.4 |
| Country | Japan |
| Cylinder bore | 86.0 mm |
| Cylinder layout | V-type |
| Emission standards | Euro 6 |
| Engine code | F33A-FTV |
| Engine model | F33A-FTV |
| Engine placement | Front, longitudinal |
| Engine type | Diesel |
| Front brakes | ventilated disc |
| Front suspension | Independent, spring |
| Fuel | diesel |
| Injection type | Common rail (diesel) |
| Length | 4950 mm |
| Number of cylinders | 6 |
| Number of doors | 5 |
| Number of gear | 10 |
| Number of seater | 5, 7 |
| Pitch Circle Diameter | DIA95.1 6x139.7 mm |
| Rear brakes | ventilated disc |
| Stroke cycle | 96.0 mm |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
| Wheelbase | 2850 mm |
Модифікації двигуна
3.4 AT 4WD (299 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 300 Series
2021–2026
299 hp
engine
Engine power
299 hp
Fuel tank capacity
110 l
Max power (kW)
220 kW
Max power at RPM
4000 RPM
Maximum torque
700 N*m
Turnover of maximum torque
2600 RPM
performance
Acceleration (0-100 km/h)
6.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
235 g/km
Highway driving fuel consumption per 100 km
7.6 l
Mixed driving fuel consumption per 100 km
8.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
dimensions
Clearance
230 mm
Curb weight
2495 kg
Full weight
3320 kg
Height
1950 mm
Width
1980 mm
suspension
Steering wheel position
Left/Right
Wheel size
265/55 R20, 265/65 R18
other
Disc size
7.5x18 ET60, 8x20 ET60
3.4 AT 4WD (309 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 300 Series
2021–2026
309 hp
engine
Engine power
309 hp
Fuel tank capacity
80 l
Max power (kW)
227 kW
Max power at RPM
4000 RPM
Maximum torque
700 N*m
Turnover of maximum torque
2600 RPM
performance
Acceleration (0-100 km/h)
6.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
13.9 l
CO2 emissions
267 g/km
Highway driving fuel consumption per 100 km
8.8 l
Mixed driving fuel consumption per 100 km
10.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
dimensions
Clearance
225 mm
Curb weight
2550 kg
Full weight
2825 kg
Height
1950 mm
Width
1980 mm
suspension
Steering wheel position
Left/Right
Wheel size
265/55 R20, 265/65 R18
other
Disc size
7.5x18 ET60, 8x20 ET60
3.4 AT 4WD (299 hp)
Привід All wheel drive (AWD)
КПП Automatic
Land Cruiser 200 Series [рест.]
2012–2015
299 hp
engine
Engine power
299 hp
Fuel tank capacity
110 l
Max power (kW)
220 kW
Max power at RPM
4000 RPM
Maximum torque
700 N*m
Turnover of maximum torque
2600 RPM
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
235 g/km
Highway driving fuel consumption per 100 km
7.6 l
Mixed driving fuel consumption per 100 km
8.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
dimensions
Back track width
1840 mm
Clearance
260 mm
Curb weight
2585 kg
Front track width
1840 mm
Full weight
3120 kg
Height
2020 mm
Width
2140 mm
suspension
Steering wheel position
Left
Wheel size
315/70 R17
Cars with the F33A-FTV engine
This engine was fitted to 1 model
| Photo | Brand | Model | Generation | Production years |
|---|---|---|---|---|
|

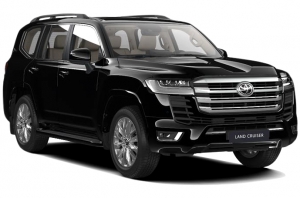

Toyota | Land Cruiser | Land Cruiser 300 | 2021 - present |
All modifications (2)
| Vehicle | Generation | Modification | Power | Gearbox | Drive |
|---|---|---|---|---|---|
| Toyota Land Cruiser | Land Cruiser 300 | 3.3 V6 D-4D 299 л.с. 10-Автомат 4x4 | 299 hp | 10-Автомат | 4x4 |
| Toyota Land Cruiser | Land Cruiser 300 | 3.3 V6 D-4D 299 л.с. 10-Автомат 2WD | 299 hp | 10-Автомат | 2WD |
Interesting Facts
- The F33A-FTV engine features advanced turbocharging technology for improved efficiency.
- It is known for its durability and reliability in off-road conditions.
Applications
| Vehicle | Generation | Years | Power | Markets |
|---|---|---|---|---|
| Toyota Hilux | Revo | 2015-present | 175hp/200hp | Australia, Asia, Europe |
| Toyota Fortuner | AN50 | 2015-present | 175hp/200hp | Australia, Asia, Europe |
Compatible transmissions: 6-speed Manual, 6-speed Automatic
Drive types: 4WD
Fuel Economy
| Fuel Type | Diesel |
| Consumption (City) | 10 L/100km |
| Consumption (Highway) | 7 L/100km |
| Consumption (Combined) | 8.5 L/100km |
| Real Consumption | 9 L/100km |
| Fuel Tank Capacity | 80 L |
| Range | 941 km |
| Cost per 100 km | 10-12 USD |
Emissions Standards
| Emission Standard | Euro 6 |
| CO₂ Emissions | 180 g/km |
| Particulate Filter (DPF) |
Present Regeneration every 150,000 km |
| AdBlue |
Required Consumption: 1 L/1000km |
Comparison with competitors
| Engine | Brand | Displacement | Power | Torque |
|---|---|---|---|---|
| Nissan YD25DDTi | Nissan | 2,488 cc | 190 hp | 450 Nm |
| Ford Puma 2.0 TDCi | Ford | 1,997 cc | 180 hp | 420 Nm |
Pros
- Higher torque output compared to competitors
- Proven reliability in various conditions
- Good fuel efficiency for a diesel engine
Cons
- Higher initial cost compared to some competitors
- Limited tuning options due to complexity
