2KD-FTV Toyota 2KD-FTV
Дизельний двигун Toyota 2KD-FTV з турбонаддувом, відомий своєю надійністю та економічністю.
74
Brand engines
6
Modifications
Technical Specifications
| Engine Displacement | 2.5 L (2,494 cc) |
| Configuration | Inline-4 |
| Number of Cylinders | 4 |
| Valves per Cylinder | 4 |
| Power | 102 - 130 л.с. |
| Torque | 260 - 340 Н*м |
| Cylinder Bore | 92.00 mm |
| Piston Stroke | 90.00 mm |
| Compression Ratio | 18.0:1 |
| Firing Order | 1-3-4-2 |
| Fuel System | Common Rail Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Garrett GT15 |
| Intercooler | Yes |
| Maximum RPM | 3,600 rpm |
| Max Torque RPM | 1,600 rpm |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 300000 or as needed |
| Block Material | Cast Iron |
| Head Material | Aluminum |
| Engine Weight | 180 kg |
| Dimensions (L×W×H) | 500 × 600 × 700 mm |
| Lubrication System | Pressure lubrication |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | Toyota KD engine family |
| Manufacturing Plant | Kariya, Japan |
| Predecessor | null |
| Successor | null |
Maintenance
| Engine Oil Capacity | 6.5 L (with filter: 7 L) |
| Recommended Viscosity | 5W-30, 10W-30 |
| Oil Standard | API CI-4, ACEA E7 |
| Recommended Brands | Toyota Genuine Oil, Mobil Delvac, Castrol GTX |
| Oil Change Interval | 10 000 km or 12 mo |
| Oil Filter | 90915-YZZD3 |
| Air Filter |
17801-0L040
Replace every 30 000 km |
| Fuel filter | 23390-0L040 |
| Spark Plugs | |
| Coolant Capacity | 7 L |
| Coolant Type | Toyota Super Long Life Coolant (Toyota) |
| Coolant Change Interval | 240 000 km |
| Thermostat Opening Temperature | 88°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 110°C |
| Critical Temperature | 120°C |
| Annual Maintenance Cost | 500-800 USD |
Reliability
Expected lifespan: 300 000 km
Common problems
| Problem | Severity | Mileage | Repair cost |
|---|---|---|---|
| Turbocharger failure | Medium | 150000-200000 km | $800-1500 |
| Injector issues | Medium | 100000-150000 km | $600-1200 |
Known defects
- Early models had issues with injector seals
- Some reports of oil leaks from the turbocharger
Warranty extensions
- Toyota offers extended warranty options for certain components
Tuning potential
Tuning potential: Medium | Max. safe power: 250 hp
| Stage | Power | Torque | Method | Cost |
|---|---|---|---|---|
| Stage 1 | 150 hp | 400 Nm |
ECU remap only Reliability impact: Minimal |
$600 |
| Stage 2 | 180 hp | 450 Nm |
ECU, Downpipe Required: Upgraded intercooler, ECU remap Reliability impact: Low |
$1200 |
| Stage 3 | 220 hp | 500 Nm |
- Required: Bigger turbo, Upgraded injectors, ECU remap Reliability impact: Medium |
$2500 |
Popular modifications
- ECU remap
- Cold air intake
- Upgraded exhaust system
Tuning limitations
- Turbo limitations above 220hp
- Cooling system needs upgrades for higher power levels
Детальні технічні характеристики
50
модифікацій
95–144
к.с.
Спільні характеристики
| Boost type | Turbocharged |
| Capacity | 2494 cm3 |
| Country | Japan |
| Cylinder layout | inline |
| Engine code | 2KD-FTV |
| Engine type | Diesel |
| Front brakes | ventilated disc |
| Fuel | diesel |
| Injection type | Common rail (diesel) |
| Number of cylinders | 4 |
| Rear brakes | drum |
| Stroke cycle | 93.8 mm |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
2.5 MT (100 hp)
Привід All wheel drive (AWD)
КПП Manual

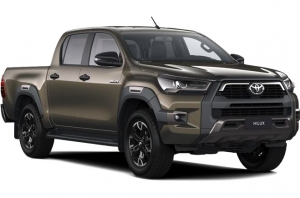

Hilux 8
2015–2020
100 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Fuel tank capacity
80 l
Maximum torque
260 N*m
Turnover of maximum torque
2400 RPM
performance
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
8.9 l
CO2 emissions
194 g/km
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
286 mm
Curb weight
1970 kg
Front track width
1540 mm
Full weight
2860 kg
Height
1815 mm
Length
5330 mm
Number of doors
4
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT 4WD (100 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 8
2015–2020
100 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
100 hp
Fuel tank capacity
80 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2400 RPM
performance
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
8.9 l
CO2 emissions
194 g/km
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1550 mm
Clearance
286 mm
Curb weight
1970 kg
Front track width
1540 mm
Full weight
2860 kg
Height
1820 mm
Length
5335 mm
Number of doors
2
Wheelbase
3085 mm
Width
1855 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17
other
Body type
Pickup
Car class
J
Disc size
6x16 ET45, 6x17 ET50, 7.5x17 ET30, 7.5x18 ET30
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 AT (144 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
18.5
Cylinder bore
92 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Fuel tank capacity
80 l
Maximum torque
343 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
1600 RPM
performance
Acceleration (0-100 km/h)
18.0 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1540 mm
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 AT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Automatic
Fortuner 1 [2th restyling]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
175 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Front track width
1540 mm
Full weight
2505 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 AT RWD (144 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1 [2th restyling]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
175 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1850 kg
Front track width
1540 mm
Full weight
2595 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 D MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
12.8 s
Max speed
160 km/h
fuel
City driving fuel consumption per 100 km
8.6 l
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1760 mm
Clearance
290 mm
Curb weight
2095 kg
Front track width
1760 mm
Full weight
2690 kg
Height
1890 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
2040 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT (102 hp)
Привід Rear wheel drive
КПП Manual
Hilux 7 [рест.]
2011–2015
102 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KDFTV
Engine placement
Front, transverse
Fuel tank capacity
80 l
Maximum torque
260 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
16.8 s
Max speed
150 km/h
fuel
Emission standards
Euro 4
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1540 mm
Full weight
2715 kg
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT (144 hp)
Привід Rear wheel drive
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
14.1 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
8.6 l
CO2 emissions
193 g/km
Emission standards
Euro 5
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
203 mm
Front track width
1510 mm
Full weight
2640 kg
Height
1795 mm
Length
5260 mm
Number of doors
2
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R16, 255/70 R15
other
Body type
Pickup
Car class
J
Disc size
6x16 ET45, 7x15 ET30
Number of seater
2
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT 4WD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
8.6 l
CO2 emissions
194 g/km
Emission standards
Euro 5
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
203 mm
Front track width
1510 mm
Full weight
2640 kg
Height
1795 mm
Length
5260 mm
Number of doors
2
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R16, 255/70 R15
other
Body type
Pickup
Car class
J
Disc size
6x16 ET45, 7x15 ET30
Number of seater
2
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT 4WD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
12.8 s
Max speed
165 km/h
fuel
City driving fuel consumption per 100 km
8.6 l
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
7.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1760 mm
Clearance
255 mm
Curb weight
2095 kg
Front track width
1760 mm
Full weight
2690 kg
Height
1890 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
2040 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
CO2 emissions
219 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1540 mm
Full weight
2690 kg
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Fortuner 1 [2th restyling]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
175 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Front track width
1540 mm
Full weight
2505 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT RWD (144 hp)
Привід Rear wheel drive
КПП Manual
Fortuner 1 [2th restyling]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
175 km/h
fuel
CO2 emissions
211 g/km
Emission standards
Euro 3
Mixed driving fuel consumption per 100 km
8.0 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1820 kg
Front track width
1540 mm
Full weight
2595 kg
Height
1850 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5D MT Turbo AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7 [рест.]
2011–2015
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
1053 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
CO2 emissions
219 g/km
Cruising range
from 790 to 1 110 km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Cargo compartment (Length x Width x Height)
1547x1515x450 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1540 mm
Full weight
2690 kg
Ground clearance
292 mm
Height
1860 mm
Length
5260 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Trailer load (with brakes)
4385 kg
Wheel size
205/80 R16
other
Body type
Pickup
Car class
J
Front track
1510 mm
Front/rear axle load
1300/1600 kg
Number of seater
5
Payload
750 kg
Pitch Circle Diameter
DIA106.1 6x139.7 mm
Rear track
1510 mm
Turning circle
13.2 m
2.5 MT (101 hp)
Привід Rear wheel drive
КПП Manual
Hiace H200 [рест.]
2010–2026
101 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
101 hp
Fuel tank capacity
70 l
Max power (kW)
74 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2400 RPM
performance
Max speed
135 km/h
fuel
Mixed driving fuel consumption per 100 km
8.8 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1650 mm
Clearance
185 mm
Curb weight
1880 kg
Front track width
1655 mm
Full weight
2880 kg
Height
2285 mm
Length
5380 mm
Number of doors
3
Wheelbase
3110 mm
Width
1880 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
175/80 R15
other
Body type
Minivan
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
8
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 AT AWD (102 hp)
Привід All wheel drive (AWD)
КПП Automatic
Fortuner 1 [рест.]
2008–2011
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
80 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Min trunk capacity
296 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 AT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Automatic
Fortuner 1 [рест.]
2008–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
170 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Front track width
1540 mm
Full weight
2500 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 AT RWD (102 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1 [рест.]
2008–2011
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
80 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Min trunk capacity
296 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 AT RWD (144 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1 [рест.]
2008–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1850 kg
Front track width
1540 mm
Full weight
2500 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT AWD (102 hp)
Привід All wheel drive (AWD)
КПП Manual
Fortuner 1 [рест.]
2008–2011
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
80 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Min trunk capacity
296 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Fortuner 1 [рест.]
2008–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Max speed
170 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Front track width
1540 mm
Full weight
2500 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT RWD (102 hp)
Привід Rear wheel drive
КПП Manual
Fortuner 1 [рест.]
2008–2011
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
80 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Min trunk capacity
296 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT RWD (144 hp)
Привід Rear wheel drive
КПП Manual
Fortuner 1 [рест.]
2008–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Min trunk capacity
296 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
fuel
Emission standards
Euro 3
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1820 kg
Front track width
1540 mm
Full weight
2500 kg
Height
1850 mm
Length
4695 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left/Right
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 D MT RWD (117 hp)
Привід Rear wheel drive
КПП Manual
Hiace XH10 [рест.]
2006–2012
117 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
117 hp
Fuel tank capacity
75 l
Max power (kW)
86 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
294 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
18.6 s
Max speed
152 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1850 kg
Front track width
1560 mm
Full weight
2600 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Minivan
Car class
M
Number of seater
8, 9
2.5 MT (117 hp)
Привід All wheel drive (AWD)
КПП Manual
Hiace XH10 [рест.]
2006–2012
117 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
117 hp
Fuel tank capacity
75 l
Max power (kW)
86 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
294 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
19.7 s
Max speed
151 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
246 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
8.0 l
Mixed driving fuel consumption per 100 km
9.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
2060 kg
Front track width
1560 mm
Full weight
2900 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Minivan
Car class
M
Number of seater
8, 9
2.5 MT (117 hp)
Привід Rear wheel drive
КПП Manual
Hiace XH10 [рест.]
2006–2012
117 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
117 hp
Fuel tank capacity
75 l
Max power (kW)
86 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
294 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
18.6 s
Max speed
152 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1850 kg
Front track width
1560 mm
Full weight
2600 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Van
Car class
M
Number of seater
3
2.5 MT (95 hp)
Привід Rear wheel drive
КПП Manual
Hiace XH10 [рест.]
2006–2012
95 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
95 hp
Fuel tank capacity
75 l
Max power (kW)
70 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
230 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
22.4 s
Max speed
147 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1850 kg
Front track width
1560 mm
Full weight
2600 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Minivan
Car class
M
Number of seater
8, 9
2.5 MT (95 hp)
Привід Rear wheel drive
КПП Manual
Hiace XH10 [рест.]
2006–2012
95 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
95 hp
Fuel tank capacity
75 l
Max power (kW)
70 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
230 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
22.4 s
Max speed
147 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1850 kg
Front track width
1560 mm
Full weight
2600 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Van
Car class
M
Number of seater
3
2.5 MT 4WD (117 hp)
Привід All wheel drive (AWD)
КПП Manual
Hiace XH10 [рест.]
2006–2012
117 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
117 hp
Fuel tank capacity
75 l
Max power (kW)
86 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
294 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
18.6 s
Max speed
152 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1765 kg
Front track width
1560 mm
Full weight
2800 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Van
Number of seater
3
2.5 MT 4WD (95 hp)
Привід All wheel drive (AWD)
КПП Manual
Hiace XH10 [рест.]
2006–2012
95 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
95 hp
Fuel tank capacity
75 l
Max power (kW)
70 kW
Max power at RPM
3600 RPM
Max trunk capacity
2294 l
Maximum torque
230 N*m
Min trunk capacity
944 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
22.4 s
Max speed
147 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
224 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.1 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1765 kg
Front track width
1560 mm
Full weight
2800 kg
Height
1955 mm
Length
4795 mm
Number of doors
4
Wheelbase
2985 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Van
Number of seater
3
2.5 MT RWD (117 hp)
Привід Rear wheel drive
КПП Manual
Hiace XH10 [рест.]
2006–2012
117 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
117 hp
Fuel tank capacity
75 l
Max power (kW)
86 kW
Max power at RPM
3600 RPM
Max trunk capacity
3199 l
Maximum torque
294 N*m
Min trunk capacity
1728 l
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
18.6 s
Max speed
152 km/h
fuel
City driving fuel consumption per 100 km
11.0 l
CO2 emissions
228 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.3 l
Mixed driving fuel consumption per 100 km
8.6 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
180 mm
Curb weight
1920 kg
Front track width
1560 mm
Full weight
2650 kg
Height
1955 mm
Length
5240 mm
Number of doors
4
Wheelbase
3430 mm
Width
1800 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
195/70 R15
other
Body type
Minivan
Car class
M
Number of seater
8, 9
2.5 AT (102 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1
2005–2008
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Fuel tank capacity
65 l
Maximum torque
260 N*m
Min trunk capacity
620 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1795 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 AT (144 hp)
Привід Rear wheel drive
КПП Automatic
Fortuner 1
2005–2008
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Fuel tank capacity
65 l
Maximum torque
343 N*m
Min trunk capacity
620 l
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1850 kg
Front track width
1540 mm
Full weight
2500 kg
Height
1795 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5 MT (102 hp)
Привід All wheel drive (AWD)
КПП Manual
Fortuner 1
2005–2008
102 hp
engine
Compression ratio
15.6
Cylinder bore
92.0 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Fuel tank capacity
65 l
Maximum torque
260 N*m
Min trunk capacity
620 l
Turnover of maximum torque
1600 RPM
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1785 kg
Front track width
1540 mm
Full weight
2380 kg
Height
1795 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Number of seater
7
Pitch Circle Diameter
DIA106.2 6x139.7 mm
2.5G MT (144 hp)
Привід Rear wheel drive
КПП Manual
Fortuner 1
2005–2008
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
65 l
Max power at RPM
to 3 400 RPM
Maximum torque
343 N*m
Min trunk capacity
620 l
Presence of intercooler
Present
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
13.3 s
Max speed
170 km/h
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1540 mm
Clearance
220 mm
Curb weight
1820 kg
Front track width
1540 mm
Full weight
2500 kg
Ground clearance
220 mm
Height
1795 mm
Length
4705 mm
Number of doors
5
Wheelbase
2750 mm
Width
1840 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
265/65 R17, 265/70 R16
other
Body type
Crossover
Car class
J
Front track
1540 mm
Number of seater
7
Payload
530 kg
Pitch Circle Diameter
DIA106.2 6x139.7 mm
Rear track
1540 mm
Turning circle
11.6 m
2.5 AT (109 hp)
Привід Rear wheel drive
КПП Automatic
Hiace H200
2004–2010
109 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
109 hp
Max power (kW)
80 kW
Max power at RPM
3400 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1465 mm
Clearance
195 mm
Curb weight
1730 kg
Front track width
1470 mm
Full weight
3145 kg
Height
1980 mm
Length
4695 mm
Number of doors
4
Wheelbase
2570 mm
Width
1695 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, Torsion
Steering wheel position
Left/Right
Wheel size
195/80 R15
other
Body type
Van
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 AT (144 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hilux 7
2004–2011
144 hp
engine
Compression ratio
18.5
Cylinder bore
92 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Fuel tank capacity
80 l
Maximum torque
343 N*m
Turnover of maximum torque
1600 RPM
performance
Acceleration (0-100 km/h)
18.0 s
Max speed
170 km/h
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1510 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1510 mm
Height
1820 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 AT 4WD (109 hp)
Привід All wheel drive (AWD)
КПП Automatic
Hiace H200
2004–2010
109 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
109 hp
Max power (kW)
80 kW
Max power at RPM
3400 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2600 RPM
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1465 mm
Clearance
185 mm
Curb weight
1840 kg
Front track width
1470 mm
Full weight
3005 kg
Height
1980 mm
Length
4695 mm
Number of doors
4
Wheelbase
2570 mm
Width
1695 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, Torsion
Steering wheel position
Left/Right
Wheel size
195/80 R15
other
Body type
Van
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 D MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7
2004–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Turnover of maximum torque
2800 RPM
performance
Acceleration (0-100 km/h)
12.8 s
Max speed
160 km/h
fuel
Emission standards
Euro 4
Mixed driving fuel consumption per 100 km
9.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1760 mm
Clearance
290 mm
Curb weight
2095 kg
Front track width
1760 mm
Full weight
2690 kg
Height
1890 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
2040 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
2.5 D-4D AT (102 hp)
Привід Rear wheel drive
КПП Automatic
Innova 1
2004–2015
102 hp
engine
Compression ratio
18.5
Cylinder bore
92 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
55 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Presence of intercooler
Present
Turnover of maximum torque
1600 RPM
fuel
Emission standards
EURO II
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1510 mm
Clearance
168 mm
Curb weight
1665 kg
Front track width
1510 mm
Height
1750 mm
Length
4555 mm
Number of doors
5
Wheelbase
2750 mm
Width
1770 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
other
Body type
Minivan
Car class
M
Front track
1510 mm
Number of seater
6, 7
Rear track
1510 mm
2.5 D-4D MT (102 hp)
Привід Rear wheel drive
КПП Manual
Innova 1
2004–2015
102 hp
engine
Compression ratio
18.5
Cylinder bore
92 mm
Engine model
2kd-ftv
Engine placement
Front, longitudinal
Engine power
102 hp
Fuel tank capacity
55 l
Max power (kW)
75 kW
Max power at RPM
3600 RPM
Maximum torque
260 N*m
Presence of intercooler
Present
Turnover of maximum torque
1600 RPM
fuel
Emission standards
EURO II
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
168 mm
Curb weight
1665 kg
Front track width
1510 mm
Height
1750 mm
Length
4555 mm
Number of doors
5
Wheelbase
2750 mm
Width
1770 mm
suspension
Back suspension
Independent, spring
Front suspension
Independent, spring
Steering wheel position
Left
other
Body type
Minivan
Car class
M
Front track
1510 mm
Number of seater
6, 7
Rear track
1510 mm
2.5 MT (102 hp)
Привід Rear wheel drive
КПП Manual
Hilux 7
2004–2011
102 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KDFTV
Engine placement
Front, transverse
Fuel tank capacity
80 l
Maximum torque
260 N*m
Turnover of maximum torque
2400 RPM
performance
Acceleration (0-100 km/h)
17.5 s
Max speed
150 km/h
fuel
Emission standards
Euro 4
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1510 mm
Full weight
2715 kg
Height
1820 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT (109 hp)
Привід Rear wheel drive
КПП Manual
Hiace H200
2004–2010
109 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
109 hp
Max power (kW)
80 kW
Max power at RPM
3400 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1465 mm
Clearance
195 mm
Curb weight
1720 kg
Front track width
1470 mm
Full weight
3135 kg
Height
1980 mm
Length
4695 mm
Number of doors
4
Wheelbase
2570 mm
Width
1695 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, Torsion
Steering wheel position
Left/Right
Wheel size
195/80 R15
other
Body type
Van
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT (120 hp)
Привід Rear wheel drive
КПП Manual
Hilux 7
2004–2011
120 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Fuel tank capacity
80 l
Maximum torque
325 N*m
Turnover of maximum torque
2000 RPM
performance
Acceleration (0-100 km/h)
13.5 s
Max speed
165 km/h
fuel
City driving fuel consumption per 100 km
9.6 l
CO2 emissions
197 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
6.2 l
Mixed driving fuel consumption per 100 km
7.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
203 mm
Curb weight
1660 kg
Front track width
1510 mm
Full weight
2740 kg
Height
1680 mm
Length
5255 mm
Number of doors
2
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15
other
Body type
Pickup
Car class
J
Number of seater
2
Pitch Circle Diameter
DIA60.1 5x114.3 mm
2.5 MT (120 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7
2004–2011
120 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine model
2KDFTV
Engine placement
Front, transverse
Fuel tank capacity
80 l
Maximum torque
325 N*m
Turnover of maximum torque
2000 RPM
performance
Acceleration (0-100 km/h)
15.0 s
Max speed
155 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
212 mm
Curb weight
1875 kg
Front track width
1510 mm
Full weight
2710 kg
Height
1820 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT 4WD (109 hp)
Привід All wheel drive (AWD)
КПП Manual
Hiace H200
2004–2010
109 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
109 hp
Max power (kW)
80 kW
Max power at RPM
3400 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2600 RPM
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1465 mm
Clearance
185 mm
Curb weight
1830 kg
Front track width
1470 mm
Full weight
2995 kg
Height
1980 mm
Length
4695 mm
Number of doors
4
Wheelbase
2570 mm
Width
1695 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, Torsion
Steering wheel position
Left/Right
Wheel size
195/80 R15
other
Body type
Van
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
3
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7
2004–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, transverse
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
12.5 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1510 mm
Full weight
2715 kg
Height
1820 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT AWD (144 hp)
Привід All wheel drive (AWD)
КПП Manual
Hilux 7
2004–2011
144 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, transverse
Engine power
144 hp
Fuel tank capacity
80 l
Max power (kW)
106 kW
Max power at RPM
3400 RPM
Maximum torque
343 N*m
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
12.5 s
Max speed
170 km/h
fuel
City driving fuel consumption per 100 km
10.1 l
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
212 mm
Curb weight
1885 kg
Front track width
1510 mm
Full weight
2715 kg
Height
1820 mm
Length
5255 mm
Number of doors
4
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15, 205/80 R16
other
Body type
Pickup
Car class
J
Number of seater
5
Pitch Circle Diameter
DIA106.1 6x139.7 mm
2.5 MT RWD (120 hp)
Привід Rear wheel drive
КПП Manual
Hilux 7
2004–2011
120 hp
engine
Compression ratio
17.4
Cylinder bore
92.0 mm
Engine placement
Front, longitudinal
Engine power
120 hp
Fuel tank capacity
80 l
Max power (kW)
88 kW
Max power at RPM
3600 RPM
Maximum torque
325 N*m
Turnover of maximum torque
2000 RPM
performance
Acceleration (0-100 km/h)
13.5 s
Max speed
165 km/h
fuel
City driving fuel consumption per 100 km
9.6 l
CO2 emissions
197 g/km
Emission standards
Euro 4
Highway driving fuel consumption per 100 km
6.2 l
Mixed driving fuel consumption per 100 km
7.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
5
dimensions
Back track width
1510 mm
Clearance
203 mm
Curb weight
1660 kg
Front track width
1510 mm
Full weight
2740 kg
Height
1680 mm
Length
5255 mm
Number of doors
2
Wheelbase
3085 mm
Width
1760 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Left
Wheel size
205/70 R15
other
Body type
Pickup
Car class
J
Number of seater
2
Pitch Circle Diameter
DIA60.1 5x114.3 mm
2.5 AT 4WD (109 hp)
Привід Rear wheel drive
КПП Automatic
Regius Ace H100
1999–2004
109 hp
engine
Compression ratio
18.5
Cylinder bore
92.0 mm
Engine model
2KD-FTV
Engine placement
Front, longitudinal
Engine power
109 hp
Fuel tank capacity
70 l
Max power (kW)
80 kW
Max power at RPM
3400 RPM
Maximum torque
260 N*m
Turnover of maximum torque
2600 RPM
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
4
dimensions
Back track width
1465 mm
Clearance
185 mm
Curb weight
1850 kg
Front track width
1470 mm
Full weight
3030 kg
Height
2245 mm
Length
4695 mm
Number of doors
5
Wheelbase
2570 mm
Width
1695 mm
suspension
Back suspension
Dependent, spring
Front suspension
Independent, spring
Steering wheel position
Right
Wheel size
195/80 R15
other
Body type
Minivan
Car class
M
Disc size
5.5x15 ET40, 6x15 ET35
Number of seater
6
Pitch Circle Diameter
DIA106.1 6x139.7 mm
Cars with the 2KD-FTV engine
This engine was fitted to 3 models
| Photo | Brand | Model | Generation | Production years |
|---|---|---|---|---|
|
Toyota | HiAce | Hiace | 2006 - 2019 |
|
Toyota | Hilux | Hilux | 2005 - 2015 |
|
No photo
|
Toyota | Mark II | Mark II (X110) | 2000 - 2004 |
All modifications (6)
| Vehicle | Generation | Modification | Power | Gearbox | Drive |
|---|---|---|---|---|---|
| Toyota HiAce | Hiace | 2.5 2KD-FTV 102 л.с. 5-МКП 2WD | 102 hp | 5-МКП | 2WD |
| Toyota HiAce | Hiace | 2.5 2KD-FTV 102 л.с. 6-МКП 2WD | 102 hp | 6-МКП | 2WD |
| Toyota Hilux | Hilux | 2.5 D-4D 144 л.с. 5-МКП 2WD | 144 hp | 5-МКП | 2WD |
| Toyota Hilux | Hilux | 2.5 D-4D 144 л.с. 6-Автомат 2WD | 144 hp | 6-Автомат | 2WD |
| Toyota Mark II | Mark II (X110) | 2.4 D-4D 130 л.с. 6-МКП 2WD | 130 hp | 6-МКП | 2WD |
| Toyota Mark II | Mark II (X110) | 2.4 D-4D 130 л.с. 5-Автомат 2WD | 130 hp | 5-Автомат | 2WD |
Interesting Facts
- The 2KD-FTV engine is known for its durability and fuel efficiency.
- It is widely used in commercial vehicles due to its reliability.
Applications
Total produced: null
| Vehicle | Generation | Years | Power | Markets |
|---|---|---|---|---|
| Toyota Hilux | 2005-2015 | 2004-2015 | 102hp/130hp | Australia, Europe, Asia |
| Toyota Fortuner | 2005-2015 | 2005-2015 | 102hp/130hp | Australia, Asia |
Compatible transmissions: 5-speed Manual, 6-speed Automatic
Drive types: RWD, 4WD
Fuel Economy
| Fuel Type | Diesel |
| Consumption (City) | 10.5 L/100km |
| Consumption (Highway) | 7.5 L/100km |
| Consumption (Combined) | 9 L/100km |
| Real Consumption | 9.5 L/100km |
| Fuel Tank Capacity | 80 L |
| Range | 888 km |
| Cost per 100 km | 8-12 USD |
Emissions Standards
| Emission Standard | Euro 4 |
| CO₂ Emissions | 200 g/km |
| Particulate Filter (DPF) |
Present Regeneration every 150,000 km |
| AdBlue | Not Required |
