B38B15 BMW B38B15
Модульний 3-циліндровий двигун з TwinPower Turbo, відомий своєю ефективністю та компактністю.
86
Двигунів бренду
35
Модифікацій
Technical Specifications
| Engine Displacement | 1.5 л (1,499 см³) |
| Configuration | Inline-3 |
| Number of Cylinders | 3 |
| Valves per Cylinder | 4 |
| Power | 102 - 140 л.с. |
| Torque | 180 - 220 Н*м |
| Cylinder Bore | 82.00 мм |
| Piston Stroke | 94.60 мм |
| Compression Ratio | 11.0:1 |
| Firing Order | 1-3-2 |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Single twin-scroll turbocharger |
| Intercooler | Yes |
| Maximum RPM | 6,500 об/хв |
| Max Torque RPM | 1,250 об/хв |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 250000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Engine Weight | 110 кг |
| Dimensions (L×W×H) | 550 × 450 × 600 мм |
| Lubrication System | Pressure lubrication |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | BMW B engine series |
| Manufacturing Plant | Hams Hall, United Kingdom |
| Predecessor | N13B16 |
Maintenance
| Engine Oil Capacity | 4.25 л (з фільтром: 4.5 л) |
| Recommended Viscosity | 5W-30, 5W-40 |
| Oil Standard | BMW Longlife-04 |
| Recommended Brands | Castrol Edge Professional, Mobil 1 ESP, Shell Helix Ultra |
| Oil Change Interval | 15 000 км або 12 міс. |
| Oil Filter | 11428570590 |
| Air Filter |
13717601868
Заміна кожні 60 000 км |
| Cabin Filter | 64319313519 |
| Spark Plugs |
Тип: Iridium Артикул: 12120039664Зазор: 0.8 мм Кількість: 3 шт Заміна кожні 60 000 км |
| Coolant Capacity | 6.5 л |
| Coolant Type | G12++ (BMW Coolant) |
| Coolant Change Interval | 240 000 км |
| Thermostat Opening Temperature | 88°C |
| Operating Temperature | 90°C |
| Max Operating Temperature | 120°C |
| Critical Temperature | 130°C |
| Annual Maintenance Cost | 700-1000 USD |
Надійність
Очікуваний ресурс: 250 000 км
Типові проблеми
| Проблема | Серйозність | Пробіг | Вартість ремонту |
|---|---|---|---|
| Oil consumption | Medium | 50000-100000 km | $500-1000 |
Відомі дефекти
- Early models had issues with oil consumption
Розширення гарантії
- BMW extended warranty for specific oil consumption issues
Потенціал тюнінгу
Потенціал тюнінгу: Medium | Макс. безпечна потужність: 220 л.с.
| Етап | Потужність | Крутний момент | Метод | Вартість |
|---|---|---|---|---|
| Stage 1 | 160 л.с. | 260 Н*м |
ECU remap only Вплив на надійність: Minimal |
$400 |
| Stage 2 | 180 л.с. | 300 Н*м |
ECU, Downpipe Необхідно: Upgraded intercooler, ECU remap Вплив на надійність: Low |
$2000 |
| Stage 3 | 200 л.с. | 340 Н*м |
- Необхідно: Bigger turbo, Forged internals Вплив на надійність: Medium |
$8000 |
Популярні модифікації
- ECU tune (Stage 1)
- Cold air intake
- Intercooler upgrade
Обмеження тюнінгу
- Fuel system limitations above 200hp
- Stock turbo limits at ~180hp
Детальні технічні характеристики
15
модифікацій
57–170
к.с.
Спільні характеристики
| Back suspension | Independent, spring |
| Boost type | Turbocharged |
| Capacity | 1499 cm3 |
| Country | Germany |
| Cylinder bore | 82.0 mm |
| Cylinder layout | inline |
| Emission standards | Euro 6 |
| Engine code | B38B15 |
| Front brakes | ventilated disc |
| Front suspension | Independent, spring |
| Fuel | 95 |
| Injection type | direct injection (direct) |
| Number of cylinders | 3 |
| Stroke cycle | 94.6 mm |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
1.5 AMT (156 hp)
Привід Front wheel drive
КПП robot
X2 2 (U10)
2023–2026
170 hp
engine
Compression ratio
11.1
Engine model
B38B15P
Engine placement
Front, transverse
Engine power
170 hp
Engine type
Gasoline
Fuel tank capacity
45 l
Max power (kW)
125 kW
Max power at RPM
4700 RPM
Max trunk capacity
1400 l
Maximum torque
280 N*m
Min trunk capacity
515 l
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
8.3 s
Max speed
213 km/h
fuel
CO2 emissions
148 g/km
Mixed driving fuel consumption per 100 km
6.5 l
transmission
Drive wheels
Front wheel drive
Gearbox type
robot
Number of gear
7
dimensions
Back track width
1575 mm
Clearance
207 mm
Curb weight
1570 kg
Front track width
1574 mm
Full weight
2150 kg
Height
1590 mm
Length
4554 mm
Number of doors
5
Wheelbase
2692 mm
Width
1845 mm
suspension
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R18
other
Body type
Crossover
Car class
C
Number of seater
5
1.5 AMT (170 hp)
Привід Front wheel drive
КПП robot
X2 2 (U10)
2023–2026
170 hp
engine
Compression ratio
11.1
Engine model
B38B15P
Engine placement
Front, transverse
Engine power
170 hp
Engine type
Gasoline
Fuel tank capacity
45 l
Max power (kW)
125 kW
Max power at RPM
4700 RPM
Max trunk capacity
1400 l
Maximum torque
280 N*m
Min trunk capacity
515 l
Turnover of maximum torque
4400 RPM
performance
Acceleration (0-100 km/h)
8.3 s
Max speed
213 km/h
fuel
CO2 emissions
148 g/km
Mixed driving fuel consumption per 100 km
6.5 l
transmission
Drive wheels
Front wheel drive
Gearbox type
robot
Number of gear
7
dimensions
Back track width
1575 mm
Clearance
207 mm
Curb weight
1570 kg
Front track width
1574 mm
Full weight
2150 kg
Height
1590 mm
Length
4554 mm
Number of doors
5
Wheelbase
2692 mm
Width
1845 mm
suspension
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R18
other
Body type
Crossover
Car class
C
Number of seater
5
1.5 AT (220 hp)
Привід All wheel drive (AWD)
КПП Automatic

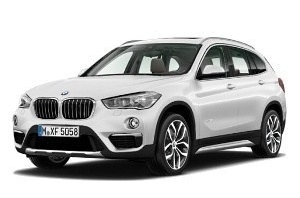

X1 2 (F48) [рест.]
2019–2022
57 km
engine
Battery capacity
10.0 KW⋅h
Compression ratio
11
Electric power reserve
57 km
Engine model
B38B15
Engine placement
Front, transverse
Engine type
Hybrid
Fuel tank capacity
36 l
Max trunk capacity
1470 l
Maximum torque
385 N*m
Min trunk capacity
450 l
Turnover of maximum torque
3800 RPM
performance
Acceleration (0-100 km/h)
6.9 s
Max speed
193 km/h
fuel
CO2 emissions
43 g/km
Consumption
13.5 KW⋅h/100 km
Mixed driving fuel consumption per 100 km
2.0 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1562 mm
Clearance
147 mm
Curb weight
1745 kg
Front track width
1561 mm
Full weight
2330 kg
Height
1598 mm
Length
4447 mm
Number of doors
5
Wheelbase
2670 mm
Width
1821 mm
suspension
Rear brakes
Disc
Steering wheel position
Left/Right
Wheel size
205/55 R17
other
Battery type
Lithium-ion (Li-ion)
Body type
Crossover
Car class
C
Flow calculation method
NEDC
Number of seater
5
Pitch Circle Diameter
DIA66.6 5x112 mm
1.5 AT (136 hp)
Привід Rear wheel drive
КПП Automatic
2 series F22/F23 [рест.]
2017–2021
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Max trunk capacity
335 l
Maximum torque
220 N*m
Min trunk capacity
280 l
Turnover of maximum torque
4300 RPM
performance
Acceleration (0-100 km/h)
8.9 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.2 l
CO2 emissions
118 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1365 kg
Front track width
1521 mm
Full weight
1870 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Cabriolet
Car class
C
Number of seater
4
1.5 AT (136 hp)
Привід Rear wheel drive
КПП Automatic
2 series F22/F23 [рест.]
2017–2021
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
4300 RPM
performance
Acceleration (0-100 km/h)
8.9 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.2 l
CO2 emissions
118 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1365 kg
Front track width
1521 mm
Full weight
1870 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left/Right
Wheel size
205/60 R16
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA66.6 5x112 mm
1.5 MT (136 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23 [рест.]
2017–2021
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Max trunk capacity
335 l
Maximum torque
220 N*m
Min trunk capacity
280 l
Turnover of maximum torque
4300 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.3 l
CO2 emissions
119 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1345 kg
Front track width
1521 mm
Full weight
1850 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Cabriolet
Car class
C
Number of seater
4
1.5 MT (136 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23 [рест.]
2017–2021
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
4300 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.3 l
CO2 emissions
119 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1345 kg
Front track width
1521 mm
Full weight
1850 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left/Right
Wheel size
205/60 R16
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA66.6 5x112 mm
1.5 MT RWD (136 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23 [рест.]
2017–2021
136 hp
engine
Compression ratio
11
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
4300 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.3 l
CO2 emissions
119 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1345 kg
Front track width
1521 mm
Full weight
1850 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left/Right
Wheel size
205/60 R16
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA66.6 5x112 mm
1.5 AT (136 hp)
Привід Rear wheel drive
КПП Automatic
3 series F30/F31/F34 [рест.]
2015–2020
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
60 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Maximum torque
220 N*m
Min trunk capacity
480 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
9.1 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.7 l
CO2 emissions
126 g/km
Highway driving fuel consumption per 100 km
4.6 l
Mixed driving fuel consumption per 100 km
5.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1583 mm
Clearance
140 mm
Curb weight
1425 kg
Front track width
1544 mm
Full weight
2000 kg
Height
1429 mm
Length
4633 mm
Number of doors
4
Wheelbase
2810 mm
Width
1811 mm
suspension
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
205/60 R16, 225/50 R17, 225/55 R16, 225/55 R17, 255/45 R17
other
Body type
Sedan
Car class
D
Disc size
7.5x16 ET37, 7.5x17 ET37, 7x16 ET31, 8.5x17 ET34, 8x17 ET34
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
Rating name
EuroNCAP
Safety assessment
5 / 5
1.5 MT (136 hp)
Привід Rear wheel drive
КПП Manual
3 series F30/F31/F34 [рест.]
2015–2020
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
60 l
Max power (kW)
100 kW
Max power at RPM
4400 RPM
Maximum torque
220 N*m
Min trunk capacity
480 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
8.9 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
7.0 l
CO2 emissions
129 g/km
Highway driving fuel consumption per 100 km
4.7 l
Mixed driving fuel consumption per 100 km
5.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1583 mm
Clearance
140 mm
Curb weight
1400 kg
Front track width
1544 mm
Full weight
1975 kg
Height
1429 mm
Length
4633 mm
Number of doors
4
Wheelbase
2810 mm
Width
1811 mm
suspension
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
205/60 R16, 225/50 R17, 225/55 R16, 225/55 R17, 255/45 R17
other
Body type
Sedan
Car class
D
Disc size
7.5x16 ET37, 7.5x17 ET37, 7x16 ET31, 8.5x17 ET34, 8x17 ET34
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
Rating name
EuroNCAP
Safety assessment
5 / 5
1.5 AT (136 hp)
Привід Rear wheel drive
КПП Automatic
2 series F22/F23
2013–2017
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
6000 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
8.9 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.2 l
CO2 emissions
118 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1360 kg
Front track width
1521 mm
Full weight
1870 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R17
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
1.5 AT (136 hp)
Привід Rear wheel drive
КПП Automatic
2 series F22/F23
2013–2017
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4500 RPM
Max trunk capacity
335 l
Maximum torque
220 N*m
Min trunk capacity
280 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
9.6 s
Max speed
205 km/h
fuel
City driving fuel consumption per 100 km
6.5 l
CO2 emissions
124 g/km
Highway driving fuel consumption per 100 km
4.6 l
Mixed driving fuel consumption per 100 km
5.3 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1515 kg
Front track width
1521 mm
Full weight
1985 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R17
other
Body type
Cabriolet
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
1.5 MT (136 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23
2013–2017
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
6000 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.3 l
CO2 emissions
119 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1340 kg
Front track width
1521 mm
Full weight
1850 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R17
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
1.5 MT (136 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23
2013–2017
136 hp
engine
Compression ratio
11
Engine model
B38B15
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4500 RPM
Max trunk capacity
335 l
Maximum torque
220 N*m
Min trunk capacity
280 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
9.4 s
Max speed
207 km/h
fuel
City driving fuel consumption per 100 km
6.9 l
CO2 emissions
129 g/km
Highway driving fuel consumption per 100 km
4.7 l
Mixed driving fuel consumption per 100 km
5.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1495 kg
Front track width
1521 mm
Full weight
1965 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R17
other
Body type
Cabriolet
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT RWD (340 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23
2013–2017
136 hp
engine
Compression ratio
11
Engine placement
Front, longitudinal
Engine power
136 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Max power (kW)
100 kW
Max power at RPM
4500 RPM
Maximum torque
220 N*m
Min trunk capacity
390 l
Turnover of maximum torque
1250 RPM
performance
Acceleration (0-100 km/h)
8.8 s
Max speed
210 km/h
fuel
City driving fuel consumption per 100 km
6.3 l
CO2 emissions
119 g/km
Highway driving fuel consumption per 100 km
4.4 l
Mixed driving fuel consumption per 100 km
5.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
140 mm
Curb weight
1340 kg
Front track width
1521 mm
Full weight
1850 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R17
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
Автомобілі з двигуном B38B15
Цей двигун встановлювався на 10 моделей
| Фото | Бренд | Модель | Генерація | Роки випуску |
|---|---|---|---|---|
|

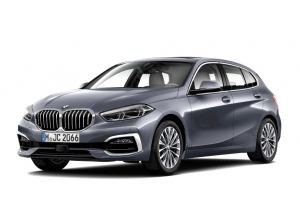

BMW | 1 Series | 1 series (F40) | 2019 - 2024 |
|
BMW | 1 Series | 1 series (F70) | 2024 - present |
|
BMW | 2 Series | 2 series (F22, F23) | 2013 - 2021 |
|
|
BMW | 2 Series | 2 series Gran Tourer (F46) | 2015 - 2022 |
|
|
BMW | 2 Series | 2 series Active Tourer (F45) | 2014 - 2021 |
|
|
BMW | 2 Series | 2 series (F44) | 2020 - 2024 |
|
BMW | 2 Series | 2 Series Active Tourer II (U06) | 2022 - present |
|

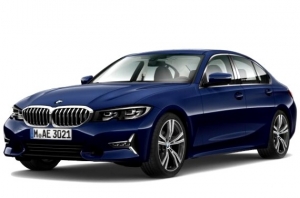

BMW | 3 Series | 3 series (G20, G21) | 2018 - present |
|

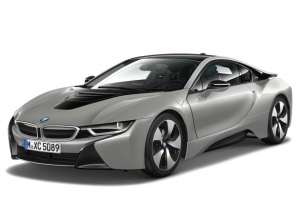

BMW | i8 | i8 | 2014 - 2020 |
|
Немає фото
|
BMW | iX1 | iX1 | 2022 - present |
|
Немає фото
|
BMW | iX2 | iX2 | 2024 - present |
|
BMW | X1 | X1 II (F48, F49) | 2015 - 2022 |
|

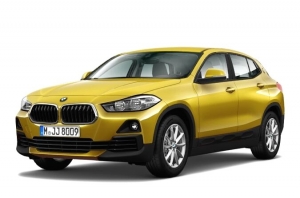

BMW | X2 | X2 (F39) | 2017 - 2023 |
|
BMW | X2 | X2 II (U10) | 2024 - present |
|
Немає фото
|
BMW | 2 Series Active Tourer | 2 Series Active Tourer (F45) | 2014 - 2026 |
|
Немає фото
|
BMW | 2 Series Active Tourer | 2 Series Active Tourer II (U06) | 2021 - present |
|
Немає фото
|
BMW | 2 Series Gran Tourer | 2 Series Gran Tourer (F46) | 2015 - 2022 |
Всі модифікації (35)
| Автомобіль | Генерація | Модифікація | Потужність | Коробка | Привід |
|---|---|---|---|---|---|
| BMW 1 Series | 1 series (F40) | BMW 118i 1.5 л.с. 140 6-МКП 2WD | 140 л.с. | 6-МКП | 2WD |
| BMW 1 Series | 1 series (F40) | BMW 118i 1.5 л.с. 140 7-Автомат 2WD | 140 л.с. | 7-Автомат | 2WD |
| BMW 1 Series | 1 series (F70) | 1.5 i3 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 1 Series | 1 series (F70) | 1.5 i3 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW 2 Series | 2 series (F22, F23) | 218i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 series (F22, F23) | 218i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW 2 Series | 2 series Gran Tourer (F46) | BMW 218i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 series Gran Tourer (F46) | BMW 218i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW 2 Series | 2 series Active Tourer (F45) | 218i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 series Active Tourer (F45) | 218i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW 2 Series | 2 series (F44) | 218i 1.5 140 л.с. 6-МКП 2WD | 140 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 series (F44) | 218i 1.5 140 л.с. 7-Автомат 2WD | 140 л.с. | 7-Автомат | 2WD |
| BMW 2 Series | 2 Series Active Tourer II (U06) | 218i 1.5 B38A15M0 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 Series Active Tourer II (U06) | 218i 1.5 B38A15M0 136 л.с. 7-DSG 2WD | 136 л.с. | 7-DSG | 2WD |
| BMW 3 Series | 3 series (G20, G21) | BMW 318i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 3 Series | 3 series (G20, G21) | BMW 318i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW i8 | i8 | BMW i8 1.5 Turbo 231 л.с. 6-МКП 4x4 | 231 л.с. | 6-МКП | 4x4 |
| BMW i8 | i8 | BMW i8 1.5 Turbo 231 л.с. 7-Автомат 4x4 | 231 л.с. | 7-Автомат | 4x4 |
| BMW i8 | i8 | BMW i8 1.5 Turbo 231 л.с. 6-МКП 2WD | 231 л.с. | 6-МКП | 2WD |
| BMW iX1 | iX1 | iX1 18i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW iX1 | iX1 | iX1 18i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW iX2 | iX2 | iX2 20i 1.5 156 л.с. 6-МКП 2WD | 156 л.с. | 6-МКП | 2WD |
| BMW iX2 | iX2 | iX2 20i 1.5 156 л.с. 7 DCT 2WD | 156 л.с. | 7 DCT | 2WD |
| BMW X1 | X1 II (F48, F49) | sDrive18i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW X1 | X1 II (F48, F49) | sDrive18i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW X2 | X2 (F39) | 18i 1.5 140 л.с. 6-МКП 2WD | 140 л.с. | 6-МКП | 2WD |
| BMW X2 | X2 (F39) | 18i 1.5 140 л.с. 7-Автомат 2WD | 140 л.с. | 7-Автомат | 2WD |
| BMW X2 | X2 II (U10) | 20i 1.5 B38A15M0 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW X2 | X2 II (U10) | 20i 1.5 B38A15M0 136 л.с. 7-DSG 2WD | 136 л.с. | 7-DSG | 2WD |
| BMW X2 | X2 II (U10) | 20i 1.5 B38A15M0 136 л.с. 8-Автомат 4x4 | 136 л.с. | 8-Автомат | 4x4 |
| BMW 2 Series Active Tourer | 2 Series Active Tourer (F45) | 216i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series Active Tourer | 2 Series Active Tourer (F45) | 218i 1.5 140 л.с. 7-Автомат 2WD | 140 л.с. | 7-Автомат | 2WD |
| BMW 2 Series Active Tourer | 2 Series Active Tourer II (U06) | 218i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
| BMW 2 Series Active Tourer | 2 Series Active Tourer II (U06) | 218i 1.5 136 л.с. 7-Автомат 2WD | 136 л.с. | 7-Автомат | 2WD |
| BMW 2 Series Gran Tourer | 2 Series Gran Tourer (F46) | 218i 1.5 136 л.с. 6-МКП 2WD | 136 л.с. | 6-МКП | 2WD |
Цікаві факти
- First BMW engine to feature a three-cylinder configuration
- Used in the BMW i8 as part of a hybrid powertrain
Застосування
Всього виготовлено: unknown
| Автомобіль | Генерація | Роки | Потужність | Ринки |
|---|---|---|---|---|
| BMW 2 Series Active Tourer | F45 | 2014-present | 102hp/136hp | Europe, Asia |
| BMW i8 | I12 | 2014-2020 | 231hp | Global |
Сумісні трансмісії: 6-speed Manual, 6-speed Automatic, 8-speed Automatic
Типи приводу: FWD, AWD
Fuel Economy
| Fuel Type | Petrol 95 |
| Octane Rating | Мінімум: 91 | Рекомендовано: 95 |
| Consumption (City) | 6.5 л/100км |
| Consumption (Highway) | 4.5 л/100км |
| Consumption (Combined) | 5.3 л/100км |
| Real Consumption | 6 л/100км |
| Fuel Tank Capacity | 50 л |
| Range | 943 км |
| Cost per 100 km | 10-12 USD |
Emissions Standards
| Emission Standard | Euro 6 |
| CO₂ Emissions | 124 г/км |
| Particulate Filter (DPF) | Absent |
| AdBlue | Not Required |
Нагороди та визнання
- International Engine of the Year (2015) — 1.0L to 1.4L
Порівняння з конкурентами
| Двигун | Бренд | Об'єм | Потужність | Крутний момент |
|---|---|---|---|---|
| 1.0 EcoBoost | Ford | 999 см³ | 125 л.с. | 170 Н*м |
| 1.2 TSI | Volkswagen | 1,197 см³ | 110 л.с. | 175 Н*м |
Переваги
- Compact and lightweight
- Efficient fuel consumption
- Good power output for its size
Недоліки
- Limited tuning potential
- Oil consumption issues in early models
Корисні ресурси
| Технічна документація | https://www.bmw.com/technical-specs |
| Форуми та обговорення |
