N55B30 BMW N55B30
Модульний 6-циліндровий двигун з TwinPower Turbo, відомий своєю потужністю та надійністю при правильному обслуговуванні.
86
Двигунів бренду
31
Модифікацій
Technical Specifications
| Engine Displacement | 3.0 л (2,979 см³) |
| Configuration | Inline-6 |
| Number of Cylinders | 6 |
| Valves per Cylinder | 4 |
| Power | 300 - 335 л.с. |
| Torque | 400 - 450 Н*м |
| Cylinder Bore | 84.00 мм |
| Piston Stroke | 89.60 мм |
| Compression Ratio | 10.2:1 |
| Firing Order | 1-5-3-6-2-4 |
| Fuel System | Direct Injection |
| Aspiration | Turbocharged |
| Turbocharger | Single twin-scroll turbocharger |
| Intercooler | Yes |
| Maximum RPM | 7,000 об/хв |
| Max Torque RPM | 1,200 об/хв |
| Valve Train | DOHC |
| Timing Drive | Chain |
| Timing Chain Replacement | 250000 or as needed |
| Block Material | Aluminum |
| Head Material | Aluminum |
| Engine Weight | 194 кг |
| Dimensions (L×W×H) | null мм |
| Lubrication System | Pressure lubrication |
| Cooling System | Liquid cooling |
Additional Information
| Engine Family | BMW N engine series |
| Manufacturing Plant | Steyr, Austria |
| Predecessor | N54B30 |
| Successor | B58B30 |
Maintenance
| Engine Oil Capacity | 6.5 л (з фільтром: 6.9 л) |
| Recommended Viscosity | 5W-30, 5W-40 |
| Oil Standard | BMW Longlife-01 |
| Recommended Brands | Castrol Edge Professional, Mobil 1, Shell Helix Ultra |
| Oil Change Interval | 15 000 км або 12 міс. |
| Oil Filter | 11427566327 |
| Air Filter |
13717599285
Заміна кожні 60 000 км |
| Паливний фільтр | 16117373510 |
| Cabin Filter | 64319142115 |
| Spark Plugs |
Тип: Iridium Артикул: 12120039664Зазор: 0.8 мм Кількість: 6 шт Заміна кожні 60 000 км |
| Coolant Capacity | 8.2 л |
| Coolant Type | G12++ (BMW Coolant) |
| Coolant Change Interval | 240 000 км |
| Thermostat Opening Temperature | 105°C |
| Operating Temperature | 105°C |
| Max Operating Temperature | 120°C |
| Critical Temperature | 130°C |
| Annual Maintenance Cost | 1000-1500 USD |
Надійність
Очікуваний ресурс: 300 000 км
Типові проблеми
| Проблема | Серйозність | Пробіг | Вартість ремонту |
|---|---|---|---|
| High-pressure fuel pump failure | High | 80000-120000 km | $1000-1500 |
| Electric water pump failure | Medium | 100000-150000 km | $800-1200 |
Відомі дефекти
- Early models had issues with the VANOS solenoid
- Oil filter housing gasket leaks
Розширення гарантії
- BMW extended warranty for high-pressure fuel pump issues up to 10 years/120000 miles
Потенціал тюнінгу
Потенціал тюнінгу: High | Макс. безпечна потужність: 500 л.с.
| Етап | Потужність | Крутний момент | Метод | Вартість |
|---|---|---|---|---|
| Stage 1 | 360 л.с. | 500 Н*м |
ECU remap only Вплив на надійність: Minimal |
$600 |
| Stage 2 | 400 л.с. | 550 Н*м |
ECU, Downpipe, Intake Необхідно: Upgraded intercooler, Downpipe, ECU remap Вплив на надійність: Low |
$3000 |
| Stage 3 | 450 л.с. | 600 Н*м |
Hybrid Turbo, Injectors Необхідно: Bigger turbo, Forged internals, Upgraded fuel system Вплив на надійність: Medium-High |
$12000 |
Популярні модифікації
- Cold air intake
- Upgraded charge pipe
- High-flow downpipe
Обмеження тюнінгу
- Stock turbo limits at ~400hp
- Fuel system limitations above 450hp
Детальні технічні характеристики
50
модифікацій
4–387
к.с.
Спільні характеристики
| Boost type | Turbocharged |
| Country | Germany |
| Cylinder layout | inline |
| Engine placement | Front, longitudinal |
| Front brakes | ventilated disc |
| Front suspension | Independent, spring |
| Number of cylinders | 6 |
| Timing belt | DOHC |
| Valves per cylinder | 4 |
Модифікації двигуна
3.0 AT 4WD (360 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 2 (G02) [рест.]
2021–2026
360 hp
engine
Capacity
2998 cm3
Compression ratio
10.2
Cylinder bore
82.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
360 hp
Engine type
Gasoline
Fuel tank capacity
65 l
Injection type
direct injection (direct)
Max power (kW)
265 kW
Max power at RPM
6500 RPM
Max trunk capacity
1430 l
Maximum torque
500 N*m
Min trunk capacity
525 l
Stroke cycle
94.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
4.9 s
Max speed
250 km/h
fuel
CO2 emissions
198 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
9.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1666 mm
Clearance
209 mm
Curb weight
1920 kg
Front track width
1620 mm
Full weight
2500 kg
Height
1621 mm
Length
4751 mm
Number of doors
5
Wheelbase
2864 mm
Width
1918 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45/R20, 275/40/R20, 245/40/R21, 275/35/R21
other
Body type
Crossover
Car class
D
Number of seater
5
3.0 AT 4WD (387 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 2 (G02) [рест.]
2021–2026
387 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
82.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
387 hp
Engine type
Gasoline
Fuel tank capacity
65 l
Injection type
direct injection (direct)
Max power (kW)
285 kW
Max power at RPM
5800 RPM
Max trunk capacity
1430 l
Maximum torque
500 N*m
Min trunk capacity
525 l
Stroke cycle
94.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
199 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
7.8 l
Mixed driving fuel consumption per 100 km
9.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1666 mm
Clearance
209 mm
Curb weight
1995 kg
Front track width
1620 mm
Full weight
2500 kg
Height
1621 mm
Length
4751 mm
Number of doors
5
Wheelbase
2864 mm
Width
1918 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45/R20, 275/40/R20, 245/40/R21, 275/35/R21
other
Body type
Crossover
Car class
D
Number of seater
5
3.0 AT (360 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 2 (G02)
2018–2021
360 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
82.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
360 hp
Engine type
Gasoline
Fuel tank capacity
65 l
Injection type
direct injection (direct)
Max power (kW)
265 kW
Max power at RPM
5500 RPM
Max trunk capacity
1430 l
Maximum torque
500 N*m
Min trunk capacity
525 l
Stroke cycle
94.6 mm
Turnover of maximum torque
4800 RPM
performance
Acceleration (0-100 km/h)
4.8 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
210 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
7.8 l
Mixed driving fuel consumption per 100 km
9.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1666 mm
Clearance
209 mm
Curb weight
1900 kg
Front track width
1620 mm
Full weight
2430 kg
Height
1621 mm
Length
4752 mm
Number of doors
5
Wheelbase
2864 mm
Width
1918 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
other
Body type
Crossover
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA66.6 5x112 mm
3.0 AT (387 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 2 (G02)
2018–2021
387 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
82.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
387 hp
Engine type
Gasoline
Fuel tank capacity
65 l
Injection type
direct injection (direct)
Max power (kW)
285 kW
Max power at RPM
5800 RPM
Max trunk capacity
1430 l
Maximum torque
500 N*m
Min trunk capacity
525 l
Stroke cycle
94.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
CO2 emissions
199 g/km
Emission standards
Euro 6
Fuel
95
Mixed driving fuel consumption per 100 km
8.7 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1666 mm
Clearance
209 mm
Curb weight
1940 kg
Front track width
1620 mm
Full weight
2430 kg
Height
1621 mm
Length
4752 mm
Number of doors
5
Wheelbase
2864 mm
Width
1918 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
other
Body type
Crossover
Car class
D
Number of seater
5
3.0 DCT (370 hp)
Привід Rear wheel drive
КПП robot

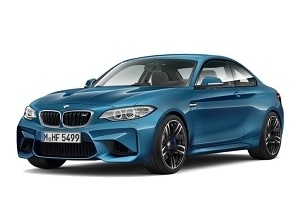

M2 F87 [рест.]
2017–2021
370 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
370 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power at RPM
to 6 500 RPM
Max trunk capacity
390 l
Maximum torque
465 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5560 RPM
performance
Acceleration (0-100 km/h)
4.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.5 l
CO2 emissions
185 g/km
Cruising range
from 500 to 810 km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
robot
Number of gear
6
dimensions
Back track width
1601 mm
Clearance
118 mm
Curb weight
1595 kg
Front track width
1579 mm
Full weight
2010 kg
Ground clearance
123 mm
Height
1410 mm
Length
4461 mm
Number of doors
2
Wheelbase
2693 mm
Width
1854 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Front track
1579 mm
Front/rear axle load
970/1080 kg
Number of seater
4
Payload
490 kg
Pitch Circle Diameter
DIA72.6 5x120 mm
Rear track
1601 mm
Turning circle
11.7 m
3.0 MT (370 hp)
Привід Rear wheel drive
КПП Manual
M2 F87 [рест.]
2017–2021
370 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
370 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power at RPM
to 6 500 RPM
Max trunk capacity
390 l
Maximum torque
465 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5560 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
199 g/km
Cruising range
from 450 to 780 km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1601 mm
Clearance
118 mm
Curb weight
1570 kg
Front track width
1579 mm
Full weight
2010 kg
Ground clearance
123 mm
Height
1410 mm
Length
4461 mm
Number of doors
2
Wheelbase
2693 mm
Width
1854 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Front track
1579 mm
Front/rear axle load
970/1080 kg
Number of seater
4
Payload
515 kg
Pitch Circle Diameter
DIA72.6 5x120 mm
Rear track
1601 mm
Turning circle
11.7 m
3.0 AT (320 hp)
Привід Rear wheel drive
КПП Automatic
6 series F06/F12/F13 [рест.]
2015–2018
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
350 l
Maximum torque
450 N*m
Min trunk capacity
300 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.6 l
CO2 emissions
176 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.8 l
Mixed driving fuel consumption per 100 km
7.6 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
123 mm
Curb weight
1820 kg
Front track width
1600 mm
Full weight
2325 kg
Height
1365 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Cabriolet
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13 [рест.]
2015–2018
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.9 l
CO2 emissions
183 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
124 mm
Curb weight
1765 kg
Front track width
1600 mm
Full weight
2255 kg
Height
1369 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Coupe
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13 [рест.]
2015–2018
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
1265 l
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.0 l
CO2 emissions
184 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
126 mm
Curb weight
1825 kg
Front track width
1600 mm
Full weight
2430 kg
Height
1392 mm
Length
5007 mm
Number of doors
4
Wheelbase
2968 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Sedan
Car class
E
Number of seater
4, 5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT AWD (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13 [рест.]
2015–2018
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.9 l
CO2 emissions
183 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
124 mm
Curb weight
1765 kg
Front track width
1600 mm
Full weight
2255 kg
Height
1369 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Coupe
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT RWD (320 hp)
Привід Rear wheel drive
КПП Automatic
6 series F06/F12/F13 [рест.]
2015–2018
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
350 l
Maximum torque
450 N*m
Min trunk capacity
300 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.6 l
CO2 emissions
176 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.8 l
Mixed driving fuel consumption per 100 km
7.6 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
123 mm
Curb weight
1820 kg
Front track width
1600 mm
Full weight
2325 kg
Height
1365 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Cabriolet
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 DCT (370 hp)
Привід Rear wheel drive
КПП robot
M2 F87
2015–2017
370 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
370 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power (kW)
272 kW
Max power at RPM
6500 RPM
Max trunk capacity
390 l
Maximum torque
465 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5560 RPM
performance
Acceleration (0-100 km/h)
4.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.5 l
CO2 emissions
185 g/km
Cruising range
from 500 to 810 km
Emission standards
Euro 6
Fuel
98
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
7.9 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
robot
Number of gear
7
dimensions
Back track width
1601 mm
Clearance
123 mm
Curb weight
1520 kg
Front track width
1579 mm
Full weight
2010 kg
Ground clearance
123 mm
Height
1410 mm
Length
4468 mm
Number of doors
2
Wheelbase
2693 mm
Width
1854 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Front track
1579 mm
Front/rear axle load
970/1080 kg
Number of seater
4
Payload
490 kg
Pitch Circle Diameter
DIA72.6 5x120 mm
Rear track
1601 mm
Turning circle
11.7 m
3.0 MT (370 hp)
Привід Rear wheel drive
КПП Manual
M2 F87
2015–2017
370 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
370 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power (kW)
272 kW
Max power at RPM
6500 RPM
Max trunk capacity
390 l
Maximum torque
465 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5560 RPM
performance
Acceleration (0-100 km/h)
4.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
CO2 emissions
199 g/km
Cruising range
from 450 to 780 km
Emission standards
Euro 6
Fuel
98
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1601 mm
Clearance
123 mm
Curb weight
1495 kg
Front track width
1579 mm
Full weight
2010 kg
Ground clearance
123 mm
Height
1410 mm
Length
4468 mm
Number of doors
2
Wheelbase
2693 mm
Width
1854 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Front track
1579 mm
Front/rear axle load
970/1080 kg
Number of seater
4
Payload
515 kg
Pitch Circle Diameter
DIA72.6 5x120 mm
Rear track
1601 mm
Turning circle
11.7 m
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 1 (F26)
2014–2018
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
67 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1400 l
Maximum torque
400 N*m
Min trunk capacity
500 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.5 s
Max speed
247 km/h
fuel
City driving fuel consumption per 100 km
10.7 l
CO2 emissions
193 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.9 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1632 mm
Clearance
204 mm
Curb weight
1815 kg
Front track width
1616 mm
Full weight
2405 kg
Height
1624 mm
Length
4671 mm
Number of doors
5
Wheelbase
2810 mm
Width
1881 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
Wheel size
245/50 R18
other
Body type
Crossover
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
X3 2 (F25) [рест.]
2014–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
67 l
Injection type
distributed injection (multipoint)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1600 l
Maximum torque
400 N*m
Min trunk capacity
550 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.6 s
Max speed
245 km/h
fuel
City driving fuel consumption per 100 km
10.7 l
CO2 emissions
193 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.9 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1632 mm
Clearance
204 mm
Curb weight
1890 kg
Front track width
1616 mm
Full weight
2405 kg
Height
1661 mm
Length
4657 mm
Number of doors
5
Wheelbase
2810 mm
Width
1881 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
Wheel size
245/50 R18
other
Body type
Crossover
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (360 hp)
Привід All wheel drive (AWD)
КПП Automatic
X4 1 (F26)
2015–2018
360 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
360 hp
Engine type
Gasoline
Fuel tank capacity
67 l
Injection type
direct injection (direct)
Max power (kW)
265 kW
Max power at RPM
5800 RPM
Max trunk capacity
1400 l
Maximum torque
465 N*m
Min trunk capacity
500 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5250 RPM
performance
Acceleration (0-100 km/h)
4.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
199 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
7.0 l
Mixed driving fuel consumption per 100 km
8.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1632 mm
Clearance
204 mm
Curb weight
1840 kg
Front track width
1616 mm
Full weight
2430 kg
Height
1624 mm
Length
4671 mm
Number of doors
5
Wheelbase
2810 mm
Width
1881 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
other
Body type
Crossover
Car class
D
Number of seater
5
3.0 AT (304 hp)
Привід Rear wheel drive
КПП Automatic
X5 3 (F15)
2013–2018
304 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
85 l
Injection type
direct injection (direct)
Max trunk capacity
1870 l
Maximum torque
407 N*m
Min trunk capacity
650 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.5 s
Max speed
209 km/h
fuel
City driving fuel consumption per 100 km
13.1 l
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
9.4 l
Mixed driving fuel consumption per 100 km
11.2 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1646 mm
Clearance
209 mm
Curb weight
2098 kg
Front track width
1640 mm
Height
1762 mm
Length
4886 mm
Number of doors
5
Wheelbase
2933 mm
Width
1938 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
255/50 R19, 255/55 R18
other
Body type
Crossover
Car class
E
Number of seater
5, 7
Pitch Circle Diameter
DIA74.1 5x120 mm
3.0 AT (306 hp)
Привід Rear wheel drive
КПП Automatic
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
60 l
Injection type
direct injection (direct)
Maximum torque
400 N*m
Min trunk capacity
445 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.1 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.6 l
CO2 emissions
178 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.5 l
Mixed driving fuel consumption per 100 km
7.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1594 mm
Clearance
130 mm
Curb weight
1525 kg
Front track width
1545 mm
Full weight
2045 kg
Height
1362 mm
Length
4638 mm
Number of doors
2
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Coupe
Car class
D
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
60 l
Injection type
direct injection (direct)
Max trunk capacity
1300 l
Maximum torque
400 N*m
Min trunk capacity
480 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.0 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.1 l
CO2 emissions
185 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.8 l
Mixed driving fuel consumption per 100 km
7.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1594 mm
Clearance
145 mm
Curb weight
1725 kg
Front track width
1545 mm
Full weight
2210 kg
Height
1389 mm
Length
4638 mm
Number of doors
5
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Liftback
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max trunk capacity
1670 l
Maximum torque
400 N*m
Min trunk capacity
560 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.7 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.1 l
CO2 emissions
188 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.3 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1626 mm
Clearance
141 mm
Curb weight
1865 kg
Front track width
1600 mm
Full weight
2505 kg
Height
1462 mm
Length
4907 mm
Number of doors
5
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45 R18
other
Body type
Wagon
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1700 l
Maximum torque
400 N*m
Min trunk capacity
500 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.1 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.7 l
CO2 emissions
199 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1654 mm
Clearance
145 mm
Curb weight
1995 kg
Front track width
1611 mm
Full weight
2625 kg
Height
1559 mm
Length
5004 mm
Number of doors
5
Wheelbase
3070 mm
Width
1901 mm
suspension
Back suspension
Independent, pneumatic element
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/50 R18, 245/45 R19
other
Body type
Liftback
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
57 l
Injection type
direct injection (direct)
Max trunk capacity
370 l
Maximum torque
400 N*m
Min trunk capacity
220 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
4.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
178 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.8 l
Mixed driving fuel consumption per 100 km
7.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1594 mm
Clearance
145 mm
Curb weight
1590 kg
Front track width
1545 mm
Full weight
2110 kg
Height
1384 mm
Length
4638 mm
Number of doors
2
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Cabriolet
Car class
D
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід Rear wheel drive
КПП Automatic
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Maximum torque
400 N*m
Min trunk capacity
520 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
169 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1627 mm
Clearance
141 mm
Curb weight
1850 kg
Front track width
1600 mm
Full weight
2355 kg
Height
1491 mm
Length
5055 mm
Number of doors
4
Wheelbase
3108 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (326 hp)
Привід All wheel drive (AWD)
КПП Automatic
2 series F22/F23
2013–2017
326 hp
engine
Capacity
2979 cm3
Compression ratio
11
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
326 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power (kW)
240 kW
Max power at RPM
5800 RPM
Max trunk capacity
335 l
Maximum torque
450 N*m
Min trunk capacity
280 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
4.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.3 l
CO2 emissions
193 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
130 mm
Curb weight
1670 kg
Front track width
1521 mm
Full weight
2100 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Cabriolet
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (326 hp)
Привід All wheel drive (AWD)
КПП Automatic
2 series F22/F23
2013–2017
326 hp
engine
Capacity
2979 cm3
Compression ratio
11
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Maximum torque
450 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
4.6 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.8 l
CO2 emissions
182 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
7.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1556 mm
Clearance
130 mm
Curb weight
1600 kg
Front track width
1521 mm
Full weight
2035 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (340 hp)
Привід Rear wheel drive
КПП Automatic
5 series F07/F10/F11 [рест.]
2013–2017
4 km
engine
Battery capacity
1.4 KW⋅h
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Electric power reserve
4 km
Engine model
N55B30
Engine type
Hybrid
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Maximum torque
450 N*m
Min trunk capacity
520 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
6.6 l
CO2 emissions
149 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
6.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1627 mm
Clearance
141 mm
Curb weight
1850 kg
Front track width
1600 mm
Full weight
2400 kg
Height
1464 mm
Length
4907 mm
Number of doors
4
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Battery type
Lithium-ion (Li-ion)
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT AWD (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
X5 3 (F15)
2013–2018
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
85 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1870 l
Maximum torque
400 N*m
Min trunk capacity
650 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.5 s
Max speed
235 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
197 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.9 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1646 mm
Clearance
209 mm
Curb weight
2030 kg
Front track width
1640 mm
Full weight
2740 kg
Height
1762 mm
Length
4886 mm
Number of doors
5
Wheelbase
2933 mm
Width
1938 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left/Right
Wheel size
255/50 R19, 255/55 R18
other
Body type
Crossover
Car class
E
Number of seater
5, 7
Pitch Circle Diameter
DIA74.1 5x120 mm
3.0 AT AWD (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Maximum torque
400 N*m
Min trunk capacity
520 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.6 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.5 l
CO2 emissions
178 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
5.9 l
Mixed driving fuel consumption per 100 km
7.6 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1627 mm
Clearance
141 mm
Curb weight
1765 kg
Front track width
1600 mm
Full weight
2365 kg
Height
1464 mm
Length
4907 mm
Number of doors
4
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45 R18
other
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід All wheel drive (AWD)
КПП Manual
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
57 l
Injection type
distributed injection (multipoint)
Max trunk capacity
370 l
Maximum torque
400 N*m
Min trunk capacity
220 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.6 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.9 l
CO2 emissions
190 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1594 mm
Clearance
145 mm
Curb weight
1885 kg
Front track width
1545 mm
Full weight
2260 kg
Height
1384 mm
Length
4638 mm
Number of doors
2
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Cabriolet
Car class
D
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід Rear wheel drive
КПП Manual
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
60 l
Injection type
distributed injection (multipoint)
Max trunk capacity
1300 l
Maximum torque
400 N*m
Min trunk capacity
480 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.6 l
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.3 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1594 mm
Clearance
130 mm
Curb weight
1650 kg
Front track width
1545 mm
Full weight
2135 kg
Height
1389 mm
Length
4638 mm
Number of doors
5
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Liftback
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід Rear wheel drive
КПП Manual
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Maximum torque
400 N*m
Min trunk capacity
520 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.8 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.0 l
CO2 emissions
186 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.2 l
Mixed driving fuel consumption per 100 km
8.0 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1627 mm
Clearance
141 mm
Curb weight
1675 kg
Front track width
1600 mm
Full weight
2285 kg
Height
1464 mm
Length
4907 mm
Number of doors
4
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід Rear wheel drive
КПП Manual
5 series F07/F10/F11 [рест.]
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max trunk capacity
1670 l
Maximum torque
400 N*m
Min trunk capacity
560 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.8 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
188 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.3 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1626 mm
Clearance
141 mm
Curb weight
1770 kg
Front track width
1600 mm
Full weight
2420 kg
Height
1462 mm
Length
4907 mm
Number of doors
5
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Wagon
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід Rear wheel drive
КПП Manual
4 series F32/F33/F36
2013–2017
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
60 l
Injection type
direct injection (direct)
Maximum torque
400 N*m
Min trunk capacity
445 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.4 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.4 l
CO2 emissions
193 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.2 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1594 mm
Clearance
130 mm
Curb weight
1510 kg
Front track width
1545 mm
Full weight
2030 kg
Height
1362 mm
Length
4638 mm
Number of doors
2
Wheelbase
2810 mm
Width
1825 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18, 225/50 R17
other
Body type
Coupe
Car class
D
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (326 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23
2013–2017
326 hp
engine
Capacity
2979 cm3
Compression ratio
11
Cylinder bore
84.0 mm
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Maximum torque
450 N*m
Min trunk capacity
390 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.0 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.9 l
CO2 emissions
189 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
130 mm
Curb weight
1455 kg
Front track width
1521 mm
Full weight
1965 kg
Height
1418 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Coupe
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (326 hp)
Привід Rear wheel drive
КПП Manual
2 series F22/F23
2013–2017
326 hp
engine
Capacity
2979 cm3
Compression ratio
11
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
326 hp
Engine type
Gasoline
Fuel tank capacity
52 l
Injection type
direct injection (direct)
Max power (kW)
240 kW
Max power at RPM
5800 RPM
Max trunk capacity
335 l
Maximum torque
450 N*m
Min trunk capacity
280 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.0 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.5 l
CO2 emissions
199 g/km
Emission standards
Euro 6
Fuel
95
Highway driving fuel consumption per 100 km
6.8 l
Mixed driving fuel consumption per 100 km
8.5 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1556 mm
Clearance
130 mm
Curb weight
1600 kg
Front track width
1521 mm
Full weight
2030 kg
Height
1413 mm
Length
4432 mm
Number of doors
2
Wheelbase
2690 mm
Width
1774 mm
suspension
Back suspension
Independent, spring
Rear brakes
Disc
Steering wheel position
Left
other
Body type
Cabriolet
Car class
C
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (305 hp)
Привід All wheel drive (AWD)
КПП Automatic
X1 1 (E84) [рест.]
2012–2015
305 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
63 l
Injection type
direct injection (direct)
Max trunk capacity
1350 l
Maximum torque
407 N*m
Min trunk capacity
420 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.6 s
Max speed
204 km/h
fuel
City driving fuel consumption per 100 km
13.1 l
Fuel
95
Highway driving fuel consumption per 100 km
8.7 l
Mixed driving fuel consumption per 100 km
11.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
6
dimensions
Back track width
1529 mm
Clearance
179 mm
Curb weight
1765 kg
Front track width
1500 mm
Full weight
2173 kg
Height
1545 mm
Length
4477 mm
Number of doors
5
Wheelbase
2760 mm
Width
1798 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/45 R18
other
Body type
Crossover
Car class
C
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
7 series F01/F02 [рест.]
2012–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
80 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Maximum torque
450 N*m
Min trunk capacity
500 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.6 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
184 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.6 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1650 mm
Clearance
152 mm
Curb weight
1845 kg
Front track width
1611 mm
Full weight
2525 kg
Height
1481 mm
Length
5219 mm
Number of doors
4
Wheelbase
3210 mm
Width
1902 mm
suspension
Back suspension
Independent, pneumatic element
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/50 R18
other
Body type
Sedan
Car class
F
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (354 hp)
Привід Rear wheel drive
КПП Automatic
7 series F01/F02 [рест.]
2012–2015
4 km
engine
Battery capacity
0.4 KW⋅h
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Electric power reserve
4 km
Engine model
N55B30
Engine type
Hybrid
Fuel tank capacity
80 l
Injection type
direct injection (direct)
Maximum torque
500 N*m
Min trunk capacity
500 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.7 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
7.2 l
CO2 emissions
158 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.0 l
Mixed driving fuel consumption per 100 km
6.8 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1650 mm
Clearance
152 mm
Curb weight
1970 kg
Front track width
1611 mm
Full weight
2575 kg
Height
1471 mm
Length
5079 mm
Number of doors
4
Wheelbase
3070 mm
Width
1902 mm
suspension
Back suspension
Independent, pneumatic element
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45 R19, 245/50 R18, 245/55 R17
other
Battery type
Lithium-ion (Li-ion)
Body type
Sedan
Car class
F
Flow calculation method
NEDC
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 (320 hp) xDrive, Automatic transmission, Four-wheel drive
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13
2017–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.0 l
CO2 emissions
188 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1657 mm
Clearance
124 mm
Curb weight
1765 kg
Front track width
1600 mm
Full weight
2255 kg
Height
1369 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Coupe
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13
2011–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
350 l
Maximum torque
450 N*m
Min trunk capacity
300 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.4 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
192 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.5 l
Mixed driving fuel consumption per 100 km
8.2 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1657 mm
Clearance
123 mm
Curb weight
1910 kg
Front track width
1600 mm
Full weight
2400 kg
Height
1365 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Cabriolet
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13
2011–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
1265 l
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.1 l
CO2 emissions
189 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
126 mm
Curb weight
1825 kg
Front track width
1600 mm
Full weight
2430 kg
Height
1392 mm
Length
5007 mm
Number of doors
4
Wheelbase
2968 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Sedan
Car class
E
Number of seater
4, 5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT AWD (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13
2011–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.0 l
CO2 emissions
188 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1657 mm
Clearance
124 mm
Curb weight
1765 kg
Front track width
1600 mm
Full weight
2255 kg
Height
1369 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Body type
Coupe
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT AWD (320 hp)
Привід All wheel drive (AWD)
КПП Automatic
6 series F06/F12/F13
2011–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
1265 l
Maximum torque
450 N*m
Min trunk capacity
460 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.1 l
CO2 emissions
189 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.4 l
Mixed driving fuel consumption per 100 km
8.1 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1665 mm
Clearance
126 mm
Curb weight
1825 kg
Front track width
1600 mm
Full weight
2430 kg
Height
1392 mm
Length
5007 mm
Number of doors
4
Wheelbase
2968 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Sedan
Car class
E
Number of seater
4, 5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT RWD (320 hp)
Привід Rear wheel drive
КПП Automatic
6 series F06/F12/F13
2011–2015
320 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
320 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
235 kW
Max power at RPM
5800 RPM
Max trunk capacity
350 l
Maximum torque
450 N*m
Min trunk capacity
300 l
Stroke cycle
89.6 mm
Turnover of maximum torque
4500 RPM
performance
Acceleration (0-100 km/h)
5.5 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
10.7 l
CO2 emissions
181 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.1 l
Mixed driving fuel consumption per 100 km
7.8 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1657 mm
Clearance
123 mm
Curb weight
1840 kg
Front track width
1600 mm
Full weight
2320 kg
Height
1365 mm
Length
4894 mm
Number of doors
2
Wheelbase
2855 mm
Width
1894 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Cabriolet
Car class
E
Number of seater
4
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
X3 2 (F25)
2010–2014
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
67 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1600 l
Maximum torque
400 N*m
Min trunk capacity
550 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.7 s
Max speed
245 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
204 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
7.4 l
Mixed driving fuel consumption per 100 km
8.8 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1610 mm
Clearance
212 mm
Curb weight
1805 kg
Front track width
1594 mm
Full weight
2365 kg
Height
1661 mm
Length
4648 mm
Number of doors
5
Wheelbase
2810 mm
Width
1881 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/50 R18
other
Body type
Crossover
Car class
D
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
5 series F07/F10/F11
2009–2013
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1670 l
Maximum torque
400 N*m
Min trunk capacity
560 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
188 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1654 mm
Clearance
141 mm
Curb weight
1840 kg
Front track width
1611 mm
Full weight
2495 kg
Height
1462 mm
Length
4907 mm
Number of doors
5
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/45 R18
other
Body type
Wagon
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід All wheel drive (AWD)
КПП Automatic
5 series F07/F10/F11
2009–2013
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Max trunk capacity
1700 l
Maximum torque
400 N*m
Min trunk capacity
440 l
Stroke cycle
86.9 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.3 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
12.8 l
CO2 emissions
209 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
7.2 l
Mixed driving fuel consumption per 100 km
9.3 l
transmission
Drive wheels
All wheel drive (AWD)
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1654 mm
Clearance
145 mm
Curb weight
1995 kg
Front track width
1611 mm
Full weight
2625 kg
Height
1559 mm
Length
4998 mm
Number of doors
5
Wheelbase
3070 mm
Width
1901 mm
suspension
Back suspension
Independent, pneumatic element
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
245/50 R18, 245/45 R19
other
Body type
Liftback
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (306 hp)
Привід Rear wheel drive
КПП Automatic
5 series F07/F10/F11
2009–2013
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine power
306 hp
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max power (kW)
225 kW
Max power at RPM
5800 RPM
Maximum torque
400 N*m
Min trunk capacity
530 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.2 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.2 l
CO2 emissions
188 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1627 mm
Clearance
141 mm
Curb weight
1875 kg
Front track width
1600 mm
Full weight
2355 kg
Height
1492 mm
Length
5039 mm
Number of doors
4
Wheelbase
3108 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17
other
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 AT (340 hp)
Привід Rear wheel drive
КПП Automatic
5 series F07/F10/F11
2009–2013
4 km
engine
Battery capacity
1.4 KW⋅h
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Electric power reserve
4 km
Engine code
N55B30
Engine model
N55B30
Engine type
Hybrid
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Maximum torque
450 N*m
Min trunk capacity
530 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
5.9 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
6.7 l
CO2 emissions
149 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
5.7 l
Mixed driving fuel consumption per 100 km
6.4 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Automatic
Number of gear
8
dimensions
Back track width
1654 mm
Clearance
141 mm
Curb weight
1850 kg
Front track width
1611 mm
Full weight
2400 kg
Height
1464 mm
Length
4899 mm
Number of doors
4
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/45 R18
other
Battery type
Lithium-ion (Li-ion)
Body type
Sedan
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
3.0 MT (306 hp)
Привід Rear wheel drive
КПП Manual
5 series F07/F10/F11
2009–2013
306 hp
engine
Capacity
2979 cm3
Compression ratio
10.2
Cylinder bore
84.0 mm
Engine code
N55B30
Engine model
N55B30
Engine type
Gasoline
Fuel tank capacity
70 l
Injection type
direct injection (direct)
Max trunk capacity
1670 l
Maximum torque
400 N*m
Min trunk capacity
560 l
Stroke cycle
89.6 mm
Turnover of maximum torque
5000 RPM
performance
Acceleration (0-100 km/h)
6.0 s
Max speed
250 km/h
fuel
City driving fuel consumption per 100 km
11.9 l
CO2 emissions
188 g/km
Emission standards
Euro 5
Fuel
95
Highway driving fuel consumption per 100 km
6.7 l
Mixed driving fuel consumption per 100 km
8.6 l
transmission
Drive wheels
Rear wheel drive
Gearbox type
Manual
Number of gear
6
dimensions
Back track width
1654 mm
Clearance
141 mm
Curb weight
1840 kg
Front track width
1611 mm
Full weight
2420 kg
Height
1462 mm
Length
4907 mm
Number of doors
5
Wheelbase
2968 mm
Width
1860 mm
suspension
Back suspension
Independent, spring
Rear brakes
ventilated disc
Steering wheel position
Left
Wheel size
225/55 R17, 245/40 R19, 245/45 R18
other
Body type
Wagon
Car class
E
Number of seater
5
Pitch Circle Diameter
DIA72.6 5x120 mm
Автомобілі з двигуном N55B30
Цей двигун встановлювався на 13 моделей
| Фото | Бренд | Модель | Генерація | Роки випуску |
|---|---|---|---|---|
|
BMW | 1 Series | 1 series (F20, F21) | 2011 - 2020 |
|
BMW | 2 Series | 2 series (F22, F23) | 2013 - 2021 |
|
BMW | 3 Series | 3 series Gran Turismo (F34) | 2013 - 2019 |
|
BMW | 3 Series | 3 series (F30, F31) | 2012 - 2019 |
|
BMW | 4 Series | 4 series Gran Coupe (F36) | 2014 - 2020 |
|
BMW | 5 Series | 5 series Gran Turismo (F07) | 2009 - 2017 |
|
|
BMW | 5 Series | 5 series (F10, F11) | 2010 - 2017 |
|
BMW | 6 Series | 6 series Gran Coupe (F14) | 2012 - 2019 |
|
|
BMW | 6 Series | 6 series (F12, F13) | 2011 - 2019 |
|
BMW | 7 Series | 7 series (F01, F02, F03, F04) | 2008 - 2015 |
|
BMW | M2 | M2 (F87) | 2015 - 2021 |
|
BMW | X3 | X3 II (F25) | 2010 - 2017 |
|
BMW | X4 | X4 (F26) | 2014 - 2018 |
|
BMW | X6 | X6 (E71, E72) | 2008 - 2014 |
|
Немає фото
|
Evolute | i-PRO | i-Pro | 2022 - present |
|
Немає фото
|
Alpina | B4 | B4 (F32) | 2013 - present |
Всі модифікації (31)
| Автомобіль | Генерація | Модифікація | Потужність | Коробка | Привід |
|---|---|---|---|---|---|
| BMW 1 Series | 1 series (F20, F21) | M140i 3.0 л.с. 6-МКП 2WD | 340 л.с. | 6-МКП | 2WD |
| BMW 1 Series | 1 series (F20, F21) | M140i 3.0 л.с. 8-Автомат 2WD | 340 л.с. | 8-Автомат | 2WD |
| BMW 2 Series | 2 series (F22, F23) | M240i 3.0 335 л.с. 6-МКП 2WD | 335 л.с. | 6-МКП | 2WD |
| BMW 2 Series | 2 series (F22, F23) | M240i 3.0 335 л.с. 8-Автомат 2WD | 335 л.с. | 8-Автомат | 2WD |
| BMW 3 Series | 3 series Gran Turismo (F34) | BMW 340i 3.0 320 л.с. 6-МКП 2WD | 320 л.с. | 6-МКП | 2WD |
| BMW 3 Series | 3 series Gran Turismo (F34) | BMW 340i 3.0 320 л.с. 7-Автомат 2WD | 320 л.с. | 7-Автомат | 2WD |
| BMW 3 Series | 3 series Gran Turismo (F34) | BMW 340e 3.0 326 л.с. 7-Автомат 2WD | 326 л.с. | 7-Автомат | 2WD |
| BMW 3 Series | 3 series (F30, F31) | BMW 340i 3.0 326 л.с. 6-МКП 2WD | 326 л.с. | 6-МКП | 2WD |
| BMW 3 Series | 3 series (F30, F31) | BMW 340i 3.0 326 л.с. 8-Автомат 2WD | 326 л.с. | 8-Автомат | 2WD |
| BMW 3 Series | 3 series (F30, F31) | BMW 340e 3.0 326 л.с. 8-Автомат 2WD | 326 л.с. | 8-Автомат | 2WD |
| BMW 4 Series | 4 series Gran Coupe (F36) | 440i 3.0 I6 326 л.с. 8-Автомат 2WD | 326 л.с. | 8-Автомат | 2WD |
| BMW 5 Series | 5 series Gran Turismo (F07) | BMW 540i 3.0 335 л.с. 8-Автомат 2WD | 335 л.с. | 8-Автомат | 2WD |
| BMW 5 Series | 5 series (F10, F11) | 540i 3.0 Бензин 335 л.с. 8-Автомат 2WD | 335 л.с. | 8-Автомат | 2WD |
| BMW 6 Series | 6 series Gran Coupe (F14) | 640i 3.0 I6 320 л.с. 6-МКП 2WD | 320 л.с. | 6-МКП | 2WD |
| BMW 6 Series | 6 series Gran Coupe (F14) | 640i 3.0 I6 320 л.с. 8-Автомат 2WD | 320 л.с. | 8-Автомат | 2WD |
| BMW 6 Series | 6 series Gran Coupe (F14) | 640i xDrive 3.0 I6 320 л.с. 8-Автомат 4x4 | 320 л.с. | 8-Автомат | 4x4 |
| BMW 6 Series | 6 series (F12, F13) | BMW 640i 3.0 л 320 л.с. 6-МКП 2WD | 320 л.с. | 6-МКП | 2WD |
| BMW 6 Series | 6 series (F12, F13) | BMW 640i 3.0 л 320 л.с. 8-Автомат 2WD | 320 л.с. | 8-Автомат | 2WD |
| BMW 7 Series | 7 series (F01, F02, F03, F04) | 730i 3.0 I6 258 л.с. 6-МКП 2WD | 258 л.с. | 6-МКП | 2WD |
| BMW 7 Series | 7 series (F01, F02, F03, F04) | 730i 3.0 I6 258 л.с. 8-Автомат 2WD | 258 л.с. | 8-Автомат | 2WD |
| BMW 7 Series | 7 series (F01, F02, F03, F04) | 740i 3.0 I6 320 л.с. 6-МКП 2WD | 320 л.с. | 6-МКП | 2WD |
| BMW 7 Series | 7 series (F01, F02, F03, F04) | 740i 3.0 I6 320 л.с. 8-Автомат 2WD | 320 л.с. | 8-Автомат | 2WD |
| BMW M2 | M2 (F87) | BMW M2 3.0 I6 365 л.с. 6-МКП 2WD | 365 л.с. | 6-МКП | 2WD |
| BMW M2 | M2 (F87) | BMW M2 3.0 I6 365 л.с. 7 DCT 2WD | 365 л.с. | 7 DCT | 2WD |
| BMW X3 | X3 II (F25) | 35i 3.0 Petrol 306 л.с. 6-МКП 4x4 | 306 л.с. | 6-МКП | 4x4 |
| BMW X3 | X3 II (F25) | 35i 3.0 Petrol 306 л.с. 8-Автомат 4x4 | 306 л.с. | 8-Автомат | 4x4 |
| BMW X4 | X4 (F26) | M40i 3.0 Petrol 360 л.с. 8-Автомат 4x4 | 360 л.с. | 8-Автомат | 4x4 |
| BMW X6 | X6 (E71, E72) | xDrive40i 3.0 л. 335 л.с. 8-Автомат 4x4 | 335 л.с. | 8-Автомат | 4x4 |
| Evolute i-PRO | i-Pro | Evolute i-PRO 2022 300 л.с. 8-Автомат 4x4 | 300 л.с. | 8-Автомат | 4x4 |
| Alpina B4 | B4 (F32) | B4 3.0 Bi-Turbo 400 л.с. 8-Автомат 4x4 | 400 л.с. | 8-Автомат | 4x4 |
| Alpina B4 | B4 (F32) | B4 3.0 Bi-Turbo 400 л.с. 6-МКП 2WD | 400 л.с. | 6-МКП | 2WD |
Цікаві факти
- First BMW engine to use a twin-scroll turbocharger
- Won multiple awards for its performance and efficiency
Застосування
Всього виготовлено: ~500000
| Автомобіль | Генерація | Роки | Потужність | Ринки |
|---|---|---|---|---|
| BMW 3 Series | F30 | 2011-2019 | 300hp | Europe, USA, Asia |
| BMW 5 Series | F10 | 2010-2016 | 300hp | Europe, USA |
Сумісні трансмісії: 6-speed Manual, 8-speed Automatic ZF8HP
Типи приводу: RWD, AWD
Fuel Economy
| Fuel Type | Petrol 95 |
| Octane Rating | Мінімум: 91 | Рекомендовано: 95 |
| Consumption (City) | 11 л/100км |
| Consumption (Highway) | 7 л/100км |
| Consumption (Combined) | 8.5 л/100км |
| Real Consumption | 9.5 л/100км |
| Fuel Tank Capacity | 60 л |
| Range | 705 км |
| Cost per 100 km | 15-20 USD |
Emissions Standards
| Emission Standard | Euro 5 |
| CO₂ Emissions | 199 г/км |
| Particulate Filter (DPF) | Absent |
| AdBlue | Not Required |
Нагороди та визнання
- Ward's 10 Best Engines (2011) — Overall
Порівняння з конкурентами
| Двигун | Бренд | Об'єм | Потужність | Крутний момент |
|---|---|---|---|---|
| M276 | Mercedes-Benz | 2,996 см³ | 329 л.с. | 480 Н*м |
| VR30DDTT | Nissan | 2,997 см³ | 300 л.с. | 400 Н*м |
Переваги
- Smooth power delivery
- Efficient for its performance
- Reliable with proper maintenance
Недоліки
- Complexity of turbocharging system
- Higher maintenance costs compared to naturally aspirated engines
Корисні ресурси
| Технічна документація | https://www.bmw.com/technical-specs |
| Форуми та обговорення |
