BMW: B58B30 BMW B58B30

Модульний 6-циліндровий двигун з TwinPower Turbo, відомий своєю потужністю та ефективністю.

Brand: BMW Type: Petrol Configuration: Inline-6 Production Years: 2015 - теперішній час Production: Steyr, Austria
86 Brand engines
2 Modifications

Technical Specifications

Engine Displacement (2,998 cc)
Configuration Inline-6
Number of Cylinders 6
Valves per Cylinder 4
Power 322 - 382 л.с.
Torque 450 - 500 Н*м
Cylinder Bore 82.00 mm
Piston Stroke 94.60 mm
Compression Ratio 11.0:1
Firing Order 1-5-3-6-2-4
Fuel System Direct Injection
Aspiration Turbocharged
Turbocharger Single twin-scroll turbocharger
Intercooler Yes
Maximum RPM 7,000 rpm
Max Torque RPM 1,600 rpm
Valve Train DOHC
Timing Drive Chain
Timing Chain Replacement 250000 or as needed
Block Material Aluminum
Head Material Aluminum
Engine Weight 190 kg
Dimensions (L×W×H) 600 × 700 × 800 mm
Lubrication System Pressure lubrication
Cooling System Liquid cooling

Additional Information

Engine Family BMW B engine series
Manufacturing Plant Steyr, Austria
Predecessor N55B30

Maintenance

Engine Oil Capacity 6.5 L (with filter: 6.9 L)
Recommended Viscosity 5W-30, 0W-30
Oil Standard BMW Longlife-01
Recommended Brands Castrol Edge Professional, Mobil 1 ESP, Shell Helix Ultra
Oil Change Interval 15 000 km or 12 mo
Oil Filter 11428583898
Air Filter 13718507320
Replace every 60 000 km
Cabin Filter 64319313519
Spark Plugs Type: Iridium
Part number: 12120039664
Gap: 0.8 mm
Quantity: 6 pcs
Replace every 60 000 km
Coolant Capacity 8.2 L
Coolant Type G12++ (BMW Coolant)
Coolant Change Interval 240 000 km
Thermostat Opening Temperature 90°C
Operating Temperature 95°C
Max Operating Temperature 120°C
Critical Temperature 130°C
Annual Maintenance Cost 1000-1500 USD

Reliability

Reliability rating: 8.5/10

Expected lifespan: 300 000 km

Common problems

Problem Severity Mileage Repair cost
Coolant leak from expansion tank Medium 80000-120000 km $400-600
High-pressure fuel pump failure High 100000-150000 km $1000-1500

Known defects

  • Potential for oil leaks from valve cover gasket
  • Early models had software issues with ECU

Warranty extensions

  • BMW extended warranty for high-pressure fuel pump issues up to 10 years/120000 miles

Tuning potential

Tuning potential: Very High | Max. safe power: 550 hp

Stage Power Torque Method Cost
Stage 1 400 hp 550 Nm ECU remap only
Reliability impact: Minimal 		$800
Stage 2 450 hp 600 Nm ECU, Downpipe, Intake
Required: Upgraded intercooler, Downpipe, ECU remap
Reliability impact: Low 		$3000
Stage 3 500 hp 650 Nm Hybrid Turbo, Injectors
Required: Bigger turbo, Forged internals, Upgraded fuel system
Reliability impact: Medium-High 		$12000

Popular modifications

  • ECU tune (Stage 1)
  • Cold air intake
  • Upgraded intercooler
  • Downpipe
  • Charge pipe upgrade

Tuning limitations

  • Stock turbo limits at ~450hp
  • Fuel system needs upgrades for higher power levels
  • Cooling system upgrades recommended for track use

Cars with the BMW: B58B30 engine

This engine was fitted to 1 model

Photo Brand Model Generation Production years

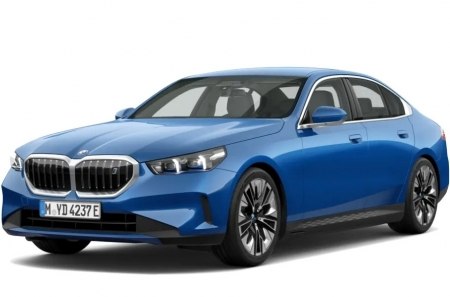

i5 (G60, G61) BMW i5 i5 (G60, G61) 2023 - present

All modifications (2)

Vehicle Generation Modification Power Gearbox Drive
BMW i5 i5 (G60, G61) i5 eDrive40 335 л.с. 8-Автомат 2WD 335 hp 8-Автомат 2WD
BMW i5 i5 (G60, G61) i5 eDrive50 500 л.с. 8-Автомат 2WD 500 hp 8-Автомат 2WD

Interesting Facts

  • The B58 engine is part of BMW's modular engine family, sharing components with other B-series engines.
  • It features a water-to-air intercooler integrated into the intake plenum for improved efficiency.
  • The B58 engine has been praised for its smooth power delivery and robust performance.

Applications

Total produced: unknown

Vehicle Generation Years Power Markets
BMW 3 Series G20 2018-present 382hp Europe, USA, Asia
BMW 5 Series G30 2016-present 335hp Europe, USA

Compatible transmissions: 8-speed Automatic ZF8HP

Drive types: RWD, AWD

Fuel Economy

Fuel Type Petrol 95
Octane Rating Minimum: 91 | Recommended: 95
Consumption (City) 10.5 L/100km
Consumption (Highway) 6.5 L/100km
Consumption (Combined) 8 L/100km
Real Consumption 9 L/100km
Fuel Tank Capacity 68 L
Range 850 km
Cost per 100 km 15-18 USD

Emissions Standards

Emission Standard Euro 6
CO₂ Emissions 180 g/km
Particulate Filter (DPF) Absent
AdBlue Not Required

Awards and Recognition

  • Ward's 10 Best Engines (2016) — Best Inline-6

Comparison with competitors

Engine Brand Displacement Power Torque
M276 Mercedes-Benz 2,996 cc 362 hp 500 Nm
VR30DDTT Nissan 2,997 cc 400 hp 475 Nm

Pros

  • Smooth and linear power delivery
  • High tuning potential
  • Efficient cooling system design

Cons

  • Potential for high repair costs
  • Complexity of turbocharging system
  • Requires high-quality fuel for optimal performance
